A120 Crane Rail — DIN 536

The heaviest A-series crane rail profile. Suited to quay cranes, ship loaders, container terminals and the most demanding large industrial overhead crane runways. Supplied with matched clips and fastening systems.

Get a Fast Quote View All Crane Rail

Crane Rail — DIN 536

A120 Crane Rail — Supplied Across Australia

Inform Rail supplies DIN 536 A120 crane rail for the heaviest overhead crane runways and large industrial applications across Australia. The A120 is the largest profile in the standard DIN 536 A-series range and is specified for major port infrastructure, container handling systems, quay cranes and high-capacity bulk handling facilities where the A100 is no longer sufficient.

The A120 features a 120mm head width and a wider 220mm foot than the A100, with a heavier web and deeper section that gives it the highest load capacity in the range. At 100 kg per metre it is a substantial piece of infrastructure. Matched fastening systems including clips, pads, fishplates and sole plates can be supplied to suit the profile.

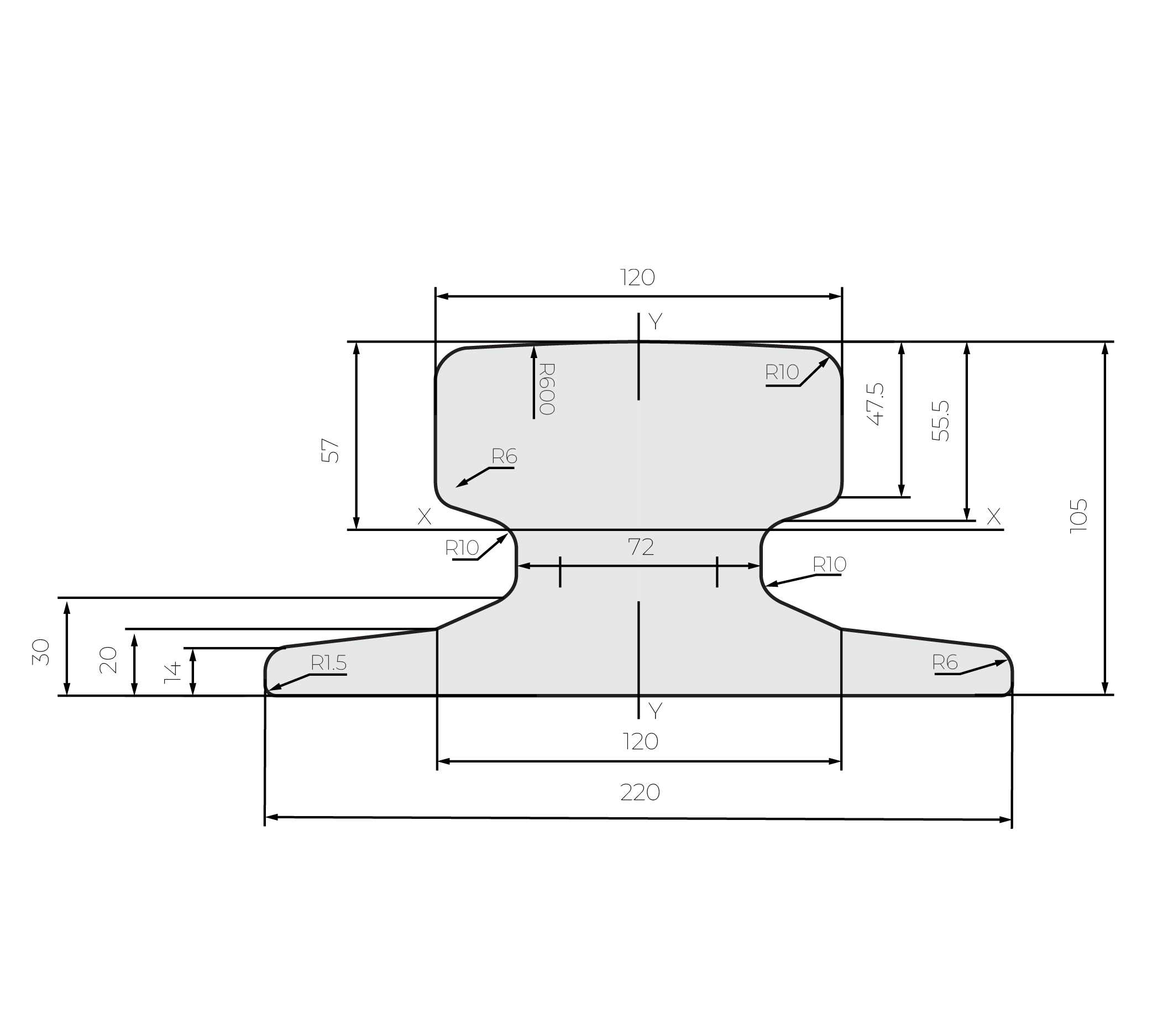

A120 DIN 536 crane rail supplied by Inform Rail Australia

120mm

Head Width

105mm

Height

220mm

Foot Width

72mm

Web

100.0

kg / metre

DIN 536

Standard

Applications

Where A120 Crane Rail is Used

The A120 is the heaviest standard A-series crane rail profile and is specified for the most demanding applications where maximum load capacity and structural rigidity are required. It is typically found on major port and container terminal infrastructure and large industrial crane systems. If you are unsure whether A120 is the right profile, send us your crane details and we'll advise.

Primary Use

The heaviest overhead crane runways in major ports, container terminals and large industrial facilities

Crane Type

Quay cranes, ship-to-shore container cranes, large ship loaders and high-capacity gantry systems

Industries

Major container ports, bulk handling terminals, shipyards and large-scale mining infrastructure

Infrastructure

Wharf crane runways, container terminal infrastructure and high-load industrial crane systems

Replacement

Direct replacement for worn or damaged A120 runway sections in existing port and industrial installations

Not sure?

Send us your wheel load, span and duty class and we'll confirm the right profile. Get in touch

Fastening Systems

Compatible Rail Clips for A120

The A120 profile requires heavy duty welded or bolted crane rail clips matched to its wider foot and high lateral load requirements. Clip selection depends on your installation method, substructure and load requirements.

Welded

M120

Two-part welded clip for A120 installations. Friction connection torqued to specification.

Welded

M165

Heaviest welded clip for A120 installations with the highest lateral load requirements.

Bolted

CLX-20

M20 through-bolt with extended lateral adjustment for A120 installations requiring alignment flexibility.

Bolted

CLX-24

M24 heavy duty bolted clip for A120 installations with high lateral load requirements.

Fastening System

Full System

Matched fishplates, sole plates, rail pads and hook bolts as a complete fastening system for A120 installations.

Not sure which clip suits your A120 installation? Send us your drawings or application details and we'll advise on the correct clip type, size and spacing.

FAQ

A120 Crane Rail: Common Questions

What is A120 crane rail used for?

A120 crane rail is the heaviest standard profile in the DIN 536 A-series range. It is used for the most demanding overhead crane runways in major ports, container terminals, shipyards and large industrial operations where maximum load capacity is required. It is commonly specified for quay cranes, ship-to-shore container cranes and large ship loader runways.

What are the dimensions of A120 crane rail?

DIN 536 A120 crane rail has a head width of 120mm, a height of 105mm, a foot width of 220mm and a web thickness of 72mm. The mass is 100.0 kg per metre. These dimensions are defined by the DIN 536 standard and are consistent across compliant manufacturers.

What clips are compatible with A120 crane rail?

Compatible welded clips for A120 include the M120 and M165. Compatible bolted clips include the CLX-20 and CLX-24. Given the heavy duty nature of A120 applications, the M165 or CLX-24 are often specified. Clip selection depends on the installation method, substructure type and load requirements. Send us your drawings or crane details and we'll advise.

What is the difference between A120 and A100 crane rail?

The A120 has a wider head (120mm vs 100mm), greater height (105mm vs 95mm), wider foot (220mm vs 200mm) and heavier web (72mm vs 60mm) than the A100. At 100 kg per metre vs 74.3 kg per metre, it is significantly heavier. A120 is specified for the most demanding applications where the A100 is no longer sufficient, typically major port crane infrastructure and very high-capacity industrial cranes.

Can A120 crane rail be supplied cut to length?

Yes. A120 crane rail can be cut to your specified lengths prior to dispatch. Standard lengths are 12m. Drilling to your bolt pattern is also available. Include your cutting and drilling requirements in your enquiry.

Can Inform Rail supply a complete A120 fastening system?

Yes. We can supply matched A120 crane rail clips, fishplates, sole plates, rail pads and hook bolts as a complete package. Send us your rail profile, substructure details and any drawings and we'll quote a complete fastening system. No minimum order applies.
