10kg Light Rail

10kg rail is the lightest profile in the Inform Rail range, suited to workshop track, materials handling systems, narrow-gauge operations and light industrial applications. Supplied Australia-wide through Brisbane and Cairns distribution with no minimum order.

Get a Fast Quote Download Product Sheet View All Light Rail
34.1mm
Head Width
66.7mm
Height
66.7mm
Foot Width
6.35mm
Web
10.1
kg / metre
JIS E1101
Standard
Light Rail

10kg Light Rail, Supplied Across Australia

Inform Rail supplies 10kg light rail for workshop track, materials handling systems and light industrial applications across Australia. The 10kg profile is the lightest rail in the range and is suited to low-speed, low-load applications where a heavier section is not required. It is manufactured to the JIS E1101 standard.

The 10kg designation refers to the mass per metre of the rail section, and the profile is sometimes written 10 kg rail. It is commonly used for workshop trolley track, fabrication yard rail, light monorail systems and narrow-gauge industrial track where simplicity of installation and ease of handling are important. Matched fastening systems can be supplied to suit the application.

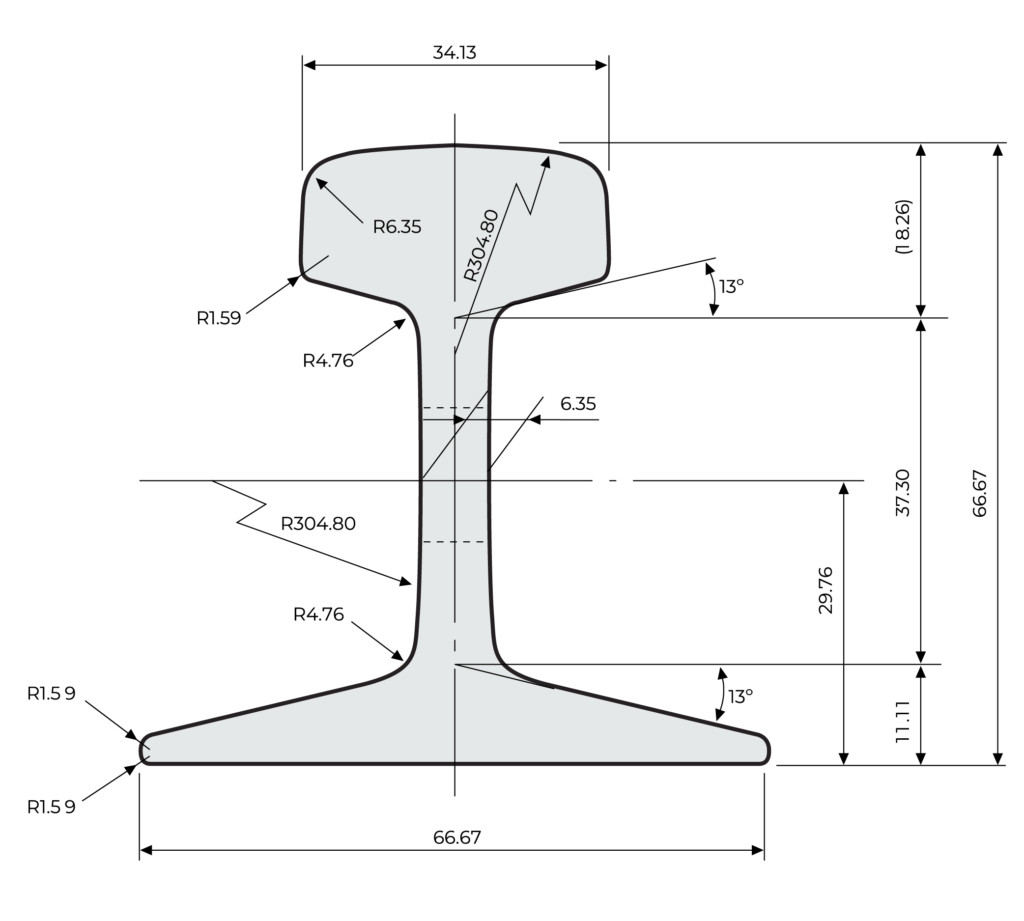

10kg light rail profile supplied by Inform Rail Australia

10kg Rail at a Glance

Mass10.1 kg/m
Head34.1mm wide
Height66.7mm
Foot66.7mm wide
Web6.35mm
StandardJIS E1101
SupplyBrisbane and Cairns distribution, no minimum order
Applications

Where 10kg Light Rail is Used

The 10kg profile is the lightest rail Inform Rail supplies and is suited to applications where loads are light and rail handling ease is a priority.

Primary Use
Workshop trolley track, light monorail systems and fabrication yard rail
Materials Handling
Light duty materials handling systems, pallet transfer systems and goods trolleys
Narrow Gauge
Narrow-gauge industrial track for mine and quarry applications with light loads
Environments
Workshops, light fabrication facilities, storage yards and small-scale industrial operations
Replacement
Direct replacement for worn 10kg sections in existing light rail installations
Not sure?
Send us your load, speed and application details and we'll confirm the right profile. Get in touch
Fastening Systems

Compatible Clips and Fastening for 10kg Rail

The 10kg profile is compatible with light duty rail clips and standard fastening components. Clip and fastening selection depends on the substructure type and application.

Bolted
CL3-12
M12 through-bolt bolted clip suited to light rail installations including 10kg track.
Welded
M71
Two-part welded clip for permanent 10kg rail installations on steel substructures.
Fastening System
Full System
Matched fishplates, sole plates and fastening components for 10kg light rail installations.

Not sure which fastening suits your 10kg installation? Send us your substructure details and application and we'll advise on the correct system.

Light Rail Range

Other Light Rail Profiles

15kg
Light rail
22kg
Light rail
30kg
Light rail
37kg
Light rail
FAQ

10kg Rail, Common Questions

What is 10kg light rail used for?
10kg light rail is used for workshop trolley track, light materials handling systems, narrow-gauge industrial track and other low-load, low-speed applications. It is the lightest rail profile Inform Rail supplies and suits applications where ease of handling and installation are priorities alongside cost-effectiveness.
What does 10kg rail mean?
The 10kg designation refers to the mass of the rail per metre of length, 10 kilograms per metre. This is the standard way Australian and international rail profiles are designated. The 10kg profile has a head width of 34.1mm, height of 66.7mm, foot width of 66.7mm and a web of 6.35mm. It conforms to the JIS E1101 standard and is sometimes written 10 kg rail or 10kg/m rail.
What is the difference between 10kg and 15kg rail?
The 15kg profile is heavier and has a larger cross-section than the 10kg, giving it higher load capacity and greater rigidity. The 10kg is suited to the lightest applications where loads are minimal. If your application involves slightly higher loads or longer spans, the 15kg or 22kg may be more appropriate. Send Inform Rail your application details for advice.
What clips and fastening are compatible with 10kg rail?
The CL3-12 bolted clip and M71 welded clip are compatible with 10kg light rail for installations on steel substructures. For track on concrete or timber, different fastening arrangements may apply. Send Inform Rail your substructure details for advice on the most appropriate fastening system for your application.
Can 10kg rail be supplied cut to length?
Yes. 10kg rail can be cut to your specified lengths prior to dispatch. Include your cutting requirements in your enquiry. Drilling to a specified bolt pattern is also available.
Where can I buy 10kg rail in Australia?
Inform Rail supplies 10kg light rail Australia-wide through its Brisbane and Cairns distribution, from single lengths to full project quantities with no minimum order. Send your lengths and quantities through the Inform Rail Easy Quote form or call (07) 3339 3085 for a fast supply price.
Can Inform Rail supply a complete 10kg fastening system?
Yes. Inform Rail can supply 10kg rail with matched fishplates, clips and fastening components as a complete system. Send your application details, substructure type and any drawings for a complete package quote. No minimum order applies.

Need 10kg Light Rail?

Send us your requirements, drawings or application details and we'll come back with a practical supply option.

Get a Fast Quote Call (07) 3339 3085
