15kg Light Rail

15kg rail is a light to medium duty profile, a step up in capacity from the 10kg, suited to workshop track, materials handling systems, narrow-gauge operations and light industrial applications. Supplied Australia-wide through Brisbane and Cairns distribution with no minimum order.

Get a Fast Quote Download Product Sheet View All Light Rail
42.9mm
Head Width
79.3mm
Height
79.3mm
Foot Width
8.33mm
Web
15.2
kg / metre
JIS E1101
Standard
Light Rail

15kg Light Rail, Supplied Across Australia

Inform Rail supplies 15kg light rail for workshop track, materials handling systems and light industrial applications across Australia. The 15kg profile is a step up in capacity from the 10kg, commonly used in mining corridors, agricultural operations, fabrication yards and narrow-gauge transport systems. It is manufactured to the JIS E1101 standard.

The 15kg designation refers to the mass per metre of the rail section, and the profile is sometimes written 15 kg rail. It suits applications where ease of handling matters alongside greater load capacity and rigidity than the lightest profiles provide. Matched fastening systems can be supplied to suit the application.

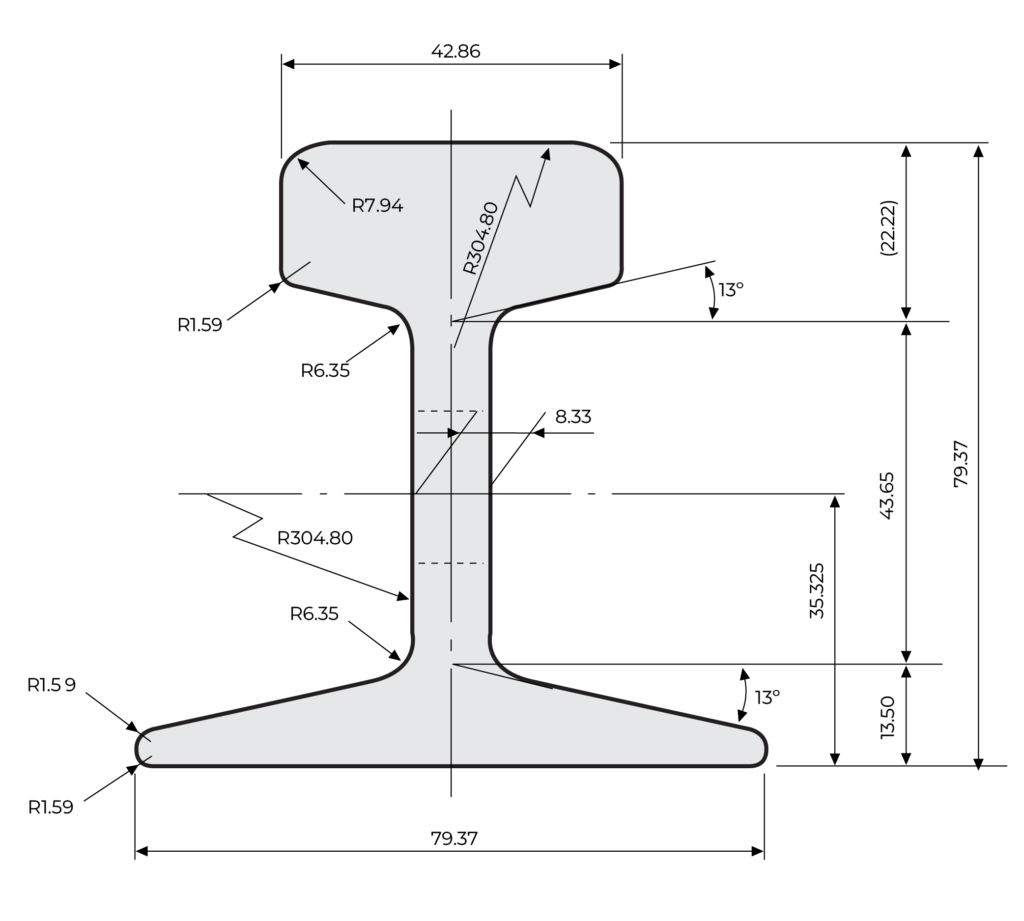

15kg light rail profile supplied by Inform Rail Australia

15kg Rail at a Glance

Mass15.2 kg/m
Head42.9mm wide
Height79.3mm
Foot79.3mm wide
Web8.33mm
StandardJIS E1101
SupplyBrisbane and Cairns distribution, no minimum order
Applications

Where 15kg Light Rail is Used

The 15kg profile is a light to medium duty rail suited to applications where the 10kg is too light and a heavier section is not required.

Primary Use
Workshop trolley track, light monorail systems and fabrication yard rail
Materials Handling
Light duty materials handling systems, pallet transfer systems and goods trolleys
Narrow Gauge
Narrow-gauge industrial track for mine, quarry and agricultural applications
Environments
Workshops, light fabrication facilities, storage yards and small-scale industrial operations
Replacement
Direct replacement for worn or damaged 15kg sections in existing light rail installations
Not sure?
Send us your load, speed and application details and we'll confirm the right profile. Get in touch
Fastening Systems

Compatible Clips and Fastening for 15kg Rail

The 15kg profile is compatible with light duty rail clips and standard fastening components. Clip and fastening selection depends on the substructure type and application.

Bolted
CL3-12
M12 through-bolt bolted clip suited to light rail installations including 15kg track.
Welded
M71
Two-part welded clip for permanent 15kg rail installations on steel substructures.
Fastening System
Full System
Matched fishplates, sole plates and fastening components for 15kg light rail installations.

Not sure which fastening suits your 15kg installation? Send us your substructure details and application and we'll advise on the correct system.

Light Rail Range

Other Light Rail Profiles

10kg
Light rail
22kg
Light rail
30kg
Light rail
37kg
Light rail
FAQ

15kg Rail, Common Questions

What is 15kg light rail used for?
15kg light rail is used for workshop trolley track, light materials handling systems, narrow-gauge industrial track and mine, quarry and agricultural applications. It is a step up in capacity from the 10kg profile and suits light to medium duty applications where ease of handling and installation are priorities alongside cost-effectiveness.
What does 15kg rail mean?
The 15kg designation refers to the mass of the rail per metre of length, 15 kilograms per metre. This is the standard way Australian and international rail profiles are designated. The 15kg profile has a head width of 42.9mm, height of 79.3mm, foot width of 79.3mm and a web of 8.33mm. It conforms to the JIS E1101 standard and is sometimes written 15 kg rail or 15kg/m rail.
What is the difference between 15kg and 22kg rail?
The 22kg profile is heavier with a larger cross-section, giving it higher load capacity. The 15kg suits light to medium duty applications where the 10kg is too light but the 22kg is more than required. If your application involves higher loads or longer spans, the 22kg or 30kg may be more appropriate. Send Inform Rail your application details for advice.
What clips and fastening are compatible with 15kg rail?
The CL3-12 bolted clip and M71 welded clip are compatible with 15kg light rail for installations on steel substructures. For track on concrete or timber, different fastening arrangements may apply. Send Inform Rail your substructure details for advice on the most appropriate fastening system for your application.
Can 15kg rail be supplied cut to length?
Yes. 15kg rail can be cut to your specified lengths prior to dispatch. Include your cutting requirements in your enquiry. Drilling to a specified bolt pattern is also available.
Where can I buy 15kg rail in Australia?
Inform Rail supplies 15kg light rail Australia-wide through its Brisbane and Cairns distribution, from single lengths to full project quantities with no minimum order. Send your lengths and quantities through the Inform Rail Easy Quote form or call (07) 3339 3085 for a fast supply price.
Can Inform Rail supply a complete 15kg fastening system?
Yes. Inform Rail can supply 15kg rail with matched fishplates, clips and fastening components as a complete system. Send your application details, substructure type and any drawings for a complete package quote. No minimum order applies.

Need 15kg Light Rail?

Send us your requirements, drawings or application details and we'll come back with a practical supply option.

Get a Fast Quote Call (07) 3339 3085
