30kg Light Rail

30kg rail is the second heaviest profile in the light rail range, suited to workshop crane runways and materials handling systems where the 22kg is no longer sufficient. Supplied Australia-wide through Brisbane and Cairns distribution with no minimum order.

Get a Fast Quote Download Product Sheet View All Light Rail
60.3mm
Head Width
108.0mm
Height
108.0mm
Foot Width
12.3mm
Web
30.1
kg / metre
JIS E1101
Standard
Light Rail

30kg Light Rail, Supplied Across Australia

Inform Rail supplies 30kg light rail for workshop crane runways, materials handling systems and industrial applications across Australia. The 30kg profile suits overhead crane runways and track where the 22kg is no longer sufficient but a standard rail section is not required. It is manufactured to the JIS E1101 standard.

The 30kg designation refers to the mass per metre of the rail section, and the profile is sometimes written 30 kg rail. It sits near the top of the light rail range, bridging the gap between the lighter workshop profiles and standard rail sections like the 41kg. Matched fastening systems can be supplied to suit the application.

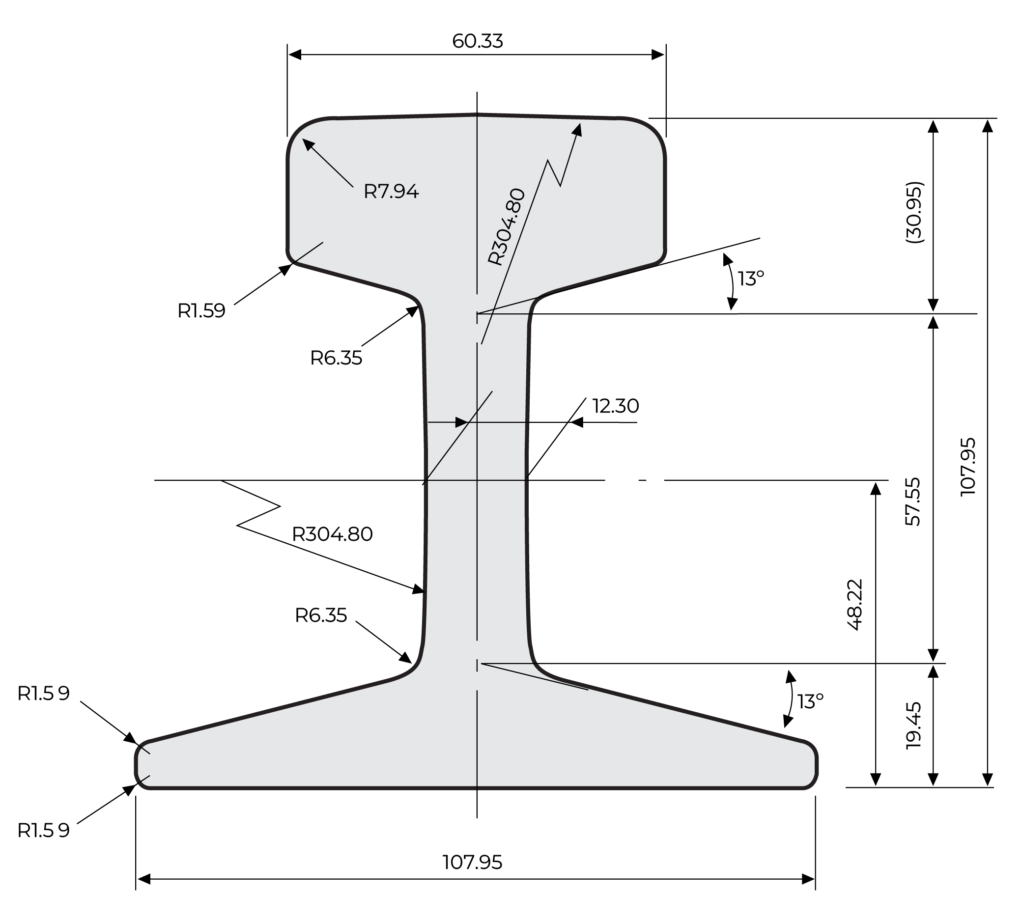

30kg light rail profile supplied by Inform Rail Australia

30kg Rail at a Glance

Mass30.1 kg/m
Head60.3mm wide
Height108.0mm
Foot108.0mm wide
Web12.3mm
StandardJIS E1101
SupplyBrisbane and Cairns distribution, no minimum order
Applications

Where 30kg Light Rail is Used

The 30kg profile is a heavier light rail suited to applications where the 22kg is too light but a standard rail section is not required.

Primary Use
Workshop overhead crane runways and crane installations with higher wheel loads
Materials Handling
Materials handling systems, transfer tracks and heavier goods trolley installations
Narrow Gauge
Narrow-gauge industrial track for mine and quarry applications with heavier loads
Environments
Workshops, fabrication facilities, storage yards and industrial operations
Replacement
Direct replacement for worn or damaged 30kg sections in existing light rail installations
Not sure?
Send us your load, speed and application details and we'll confirm the right profile. Get in touch
Fastening Systems

Compatible Clips and Fastening for 30kg Rail

The 30kg profile is compatible with light duty rail clips and standard fastening components. Clip and fastening selection depends on the substructure type and application.

Bolted
CL3-12
M12 through-bolt bolted clip suited to light rail installations including 30kg track.
Welded
M71
Two-part welded clip for permanent 30kg rail installations on steel substructures.
Fastening System
Full System
Matched fishplates, sole plates and fastening components for 30kg light rail installations.

Not sure which fastening suits your 30kg installation? Send us your substructure details and application and we'll advise on the correct system.

Light Rail Range

Other Light Rail Profiles

10kg
Light rail
15kg
Light rail
22kg
Light rail
37kg
Light rail
FAQ

30kg Rail, Common Questions

What is 30kg light rail used for?
30kg light rail is used for workshop overhead crane runways, materials handling systems and narrow-gauge industrial track where lighter sections are insufficient. It is the second heaviest profile in the light rail range and bridges the gap between lighter workshop profiles and standard rail sections like the 41kg.
What does 30kg rail mean?
The 30kg designation refers to the mass of the rail per metre of length, 30 kilograms per metre. This is the standard way Australian and international rail profiles are designated. The 30kg profile has a head width of 60.3mm, height of 108.0mm, foot width of 108.0mm and a web of 12.3mm. It conforms to the JIS E1101 standard and is sometimes written 30 kg rail or 30kg/m rail.
What is the difference between 30kg and 37kg rail?
The 37kg profile is heavier with a larger cross-section, giving it higher load capacity. The 30kg suits applications where the 22kg is too light but the 37kg is more than required. If your application involves higher loads or longer spans, the 37kg or a standard rail section like the 41kg may be more appropriate. Send Inform Rail your application details for advice.
What clips and fastening are compatible with 30kg rail?
The CL3-12 bolted clip and M71 welded clip are compatible with 30kg light rail for installations on steel substructures. For track on concrete or timber, different fastening arrangements may apply. Send Inform Rail your substructure details for advice on the most appropriate fastening system for your application.
Can 30kg rail be supplied cut to length?
Yes. 30kg rail can be cut to your specified lengths prior to dispatch. Include your cutting requirements in your enquiry. Drilling to a specified bolt pattern is also available.
Where can I buy 30kg rail in Australia?
Inform Rail supplies 30kg light rail Australia-wide through its Brisbane and Cairns distribution, from single lengths to full project quantities with no minimum order. Send your lengths and quantities through the Inform Rail Easy Quote form or call (07) 3339 3085 for a fast supply price.
Can Inform Rail supply a complete 30kg fastening system?
Yes. Inform Rail can supply 30kg rail with matched fishplates, clips and fastening components as a complete system. Send your application details, substructure type and any drawings for a complete package quote. No minimum order applies.

Need 30kg Light Rail?

Send us your requirements, drawings or application details and we'll come back with a practical supply option.

Get a Fast Quote Call (07) 3339 3085
