50kg Standard Rail

50kg rail is an active AS 1085.1 profile, one of only five sections listed in the current Australian Standard. Suited to mainline networks, industrial sidings, mining haulage and heavy overhead crane runways. Supplied Australia-wide through Brisbane and Cairns distribution with no minimum order.

Get a Fast Quote Download Product Sheet View All Standard Rail
70mm
Head Width
154mm
Height
127mm
Foot Width
15mm
Web
50.6
kg / metre
AS 1085.1
Standard
Standard Rail, AS 1085.1

50kg Standard Rail, Supplied Across Australia

Inform Rail supplies AS 1085.1 50kg standard rail for mainline networks, industrial sidings, mining haulage and heavy overhead crane runways across Australia, through Brisbane and Cairns distribution.

The 50kg is an active profile under AS1085.1-2002, one of only five profiles listed in the current standard, which makes it a preferred specification for new construction where a mid to heavy section is required. The designation refers to the mass per metre of the rail section, and the profile is sometimes written 50 kg rail or 50kg/m rail.

Rail is supplied in a standard length of 12 metres, with cut-to-length and drilling to your bolt pattern available prior to dispatch. Matched fastening systems including clips, fishplates, sole plates and rail pads can be supplied to suit the profile and substructure.

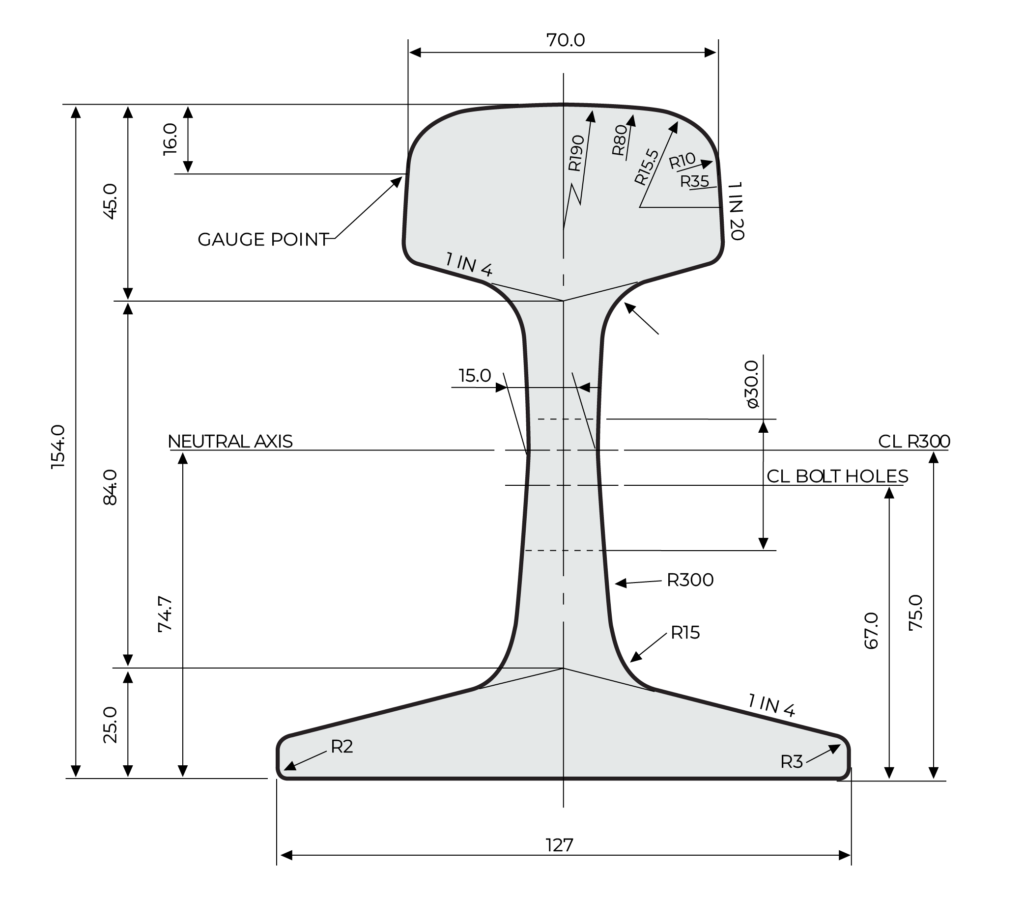

50kg AS 1085.1 standard rail supplied by Inform Rail Australia

50kg Rail at a Glance

Mass50.6 kg/m
Head70mm wide
Height154mm
Foot127mm wide
Web15mm
StandardAS 1085.1, active profile
Length12m standard, cut to length available
SupplyBrisbane and Cairns distribution, no minimum order
Applications

Where 50kg Rail is Used

An active AS1085.1 profile suited to mainline track, heavy industrial sidings and crane runway applications with higher axle loads. If you are unsure whether 50kg is the right profile, send us your details and we will advise.

Primary Use
Mainline network track, heavy industrial sidings and high-duty plant rail corridors
Crane Runways
Heavy industrial overhead crane runways and plant crane systems with higher load requirements
Mining
Mining haulage routes, ore transport corridors and heavy processing facility rail
Industrial Track
Port terminals, heavy shunting operations and high-wear plant environments
Replacement
Direct replacement for worn or damaged 50kg sections in existing installations
Not sure?
Send us your load, duty class and application and we will advise on whether 50kg or a heavier section is appropriate. Get in touch
Fastening Systems

Compatible Clips for 50kg Rail

The 50kg profile is compatible with a range of welded and bolted rail clips. Clip selection depends on your substructure type, installation method and load requirements. Send us your details and we'll advise on the right system.

Welded
M71
Two-part welded clip for 50kg installations on steel substructures. Friction connection torqued to specification.
Bolted
CL4-16
M16 through-bolt bearing clip for 50kg installations where adjustability is required.
Bolted
CL4-20
M20 through-bolt bearing clip for 50kg installations where higher bolt capacity is specified.
Bolted
CLX-20
M20 extended adjustment clip for 50kg installations requiring wider lateral alignment tolerance.
Bolted
CLX-24
M24 heavy duty clip for 50kg installations with high lateral loads and extended adjustment needs.
Fastening System
Full System
Matched fishplates, sole plates, rail pads and hook bolts as a complete fastening system for 50kg installations.

Not sure which clip suits your 50kg installation? Send us your substructure details and application and we'll advise on the correct clip type, size and spacing.

Standard Rail Range

Other Standard Rail Profiles

The full Australian standard rail range from 41kg to 68kg, supplied with matched fastening systems.

41kg
Standard rail
47kg
Standard rail
53kg
Standard rail
60kg
Standard rail
68kg
Standard rail
FAQ

50kg Rail, Common Questions

What is 50kg standard rail used for?
50kg standard rail is used for mainline network track, heavy industrial sidings, mining haulage routes and heavy overhead crane runways. It is an active profile under AS1085.1-2002 suited to applications where the 41kg is insufficient and a heavier section such as 60kg is not required.
What are the dimensions of 50kg rail?
AS 1085.1 50kg rail has a head width of 70mm, a height of 154mm, a foot width of 127mm and a web thickness of 15mm. The mass is approximately 50.6 kg per metre, and the profile is sometimes written 50 kg rail or 50kg/m rail. These dimensions conform to the Australian Standard AS 1085.1.
What is the difference between 50kg and 53kg rail?
The 53kg is a legacy profile absent from the current AS1085.1-2002 standard, while the 50kg is an active listed profile. Both are similar in weight but differ in cross-section geometry. For most new construction, the 50kg is the preferred specification. The 53kg is more commonly used for like-for-like replacement on existing 53kg infrastructure.
What clips are compatible with 50kg rail?
Compatible welded clips for 50kg include the M71 and M120. Compatible bolted clips include the CL4-20, CLX-20 and CLX-24. Clip selection depends on the substructure type, installation method and load requirements. Send us your drawings or application details and we'll advise on the correct clip.
Can 50kg rail be supplied cut to length?
Yes. 50kg rail is supplied in a standard length of 12m and can be cut to your specified lengths prior to dispatch. Drilling to your bolt pattern is also available. Include your cutting and drilling requirements in your enquiry.
Where can I buy 50kg rail in Australia?
Inform Rail supplies 50kg standard rail Australia-wide through its Brisbane and Cairns distribution, from single lengths to full project quantities with no minimum order. Send your lengths and quantities through the Inform Rail Easy Quote form or call (07) 3339 3085 for a fast supply price.
Can Inform Rail supply a complete 50kg fastening system?
Yes. We can supply matched 50kg rail clips, fishplates, sole plates, rail pads and hook bolts as a complete package. Send us your rail profile, substructure details and any drawings and we'll quote a complete fastening system. No minimum order applies.

Need 50kg Standard Rail?

Send us your requirements, drawings or application details and we'll come back with a practical supply option.
