41kg Standard Rail — AS 1085.1

The most widely used standard rail profile in Australia. Suited to industrial sidings, mining operations, workshop track, overhead crane runways and plant-level transport. No minimum order.

Get a Fast Quote View All Standard Rail Download Product Sheet
Standard Rail — AS 1085.1

41kg Standard Rail — Supplied Across Australia

Inform Rail supplies AS 1085.1 41kg standard rail for industrial sidings, mining operations, workshop crane runways and plant-level transport applications across Australia. The 41kg profile is the most widely used standard rail section in Australian industry and is one of the most commonly stocked profiles Inform Rail supplies.

The 41kg designation refers to the approximate mass per metre of the rail section. It is an Australian Standard profile under AS 1085.1, suited to moderate load applications where light rail is insufficient and heavier sections such as 47kg or 50kg are not required. Matched fastening systems including clips, fishplates, sole plates and rail pads can be supplied to suit the profile and substructure.

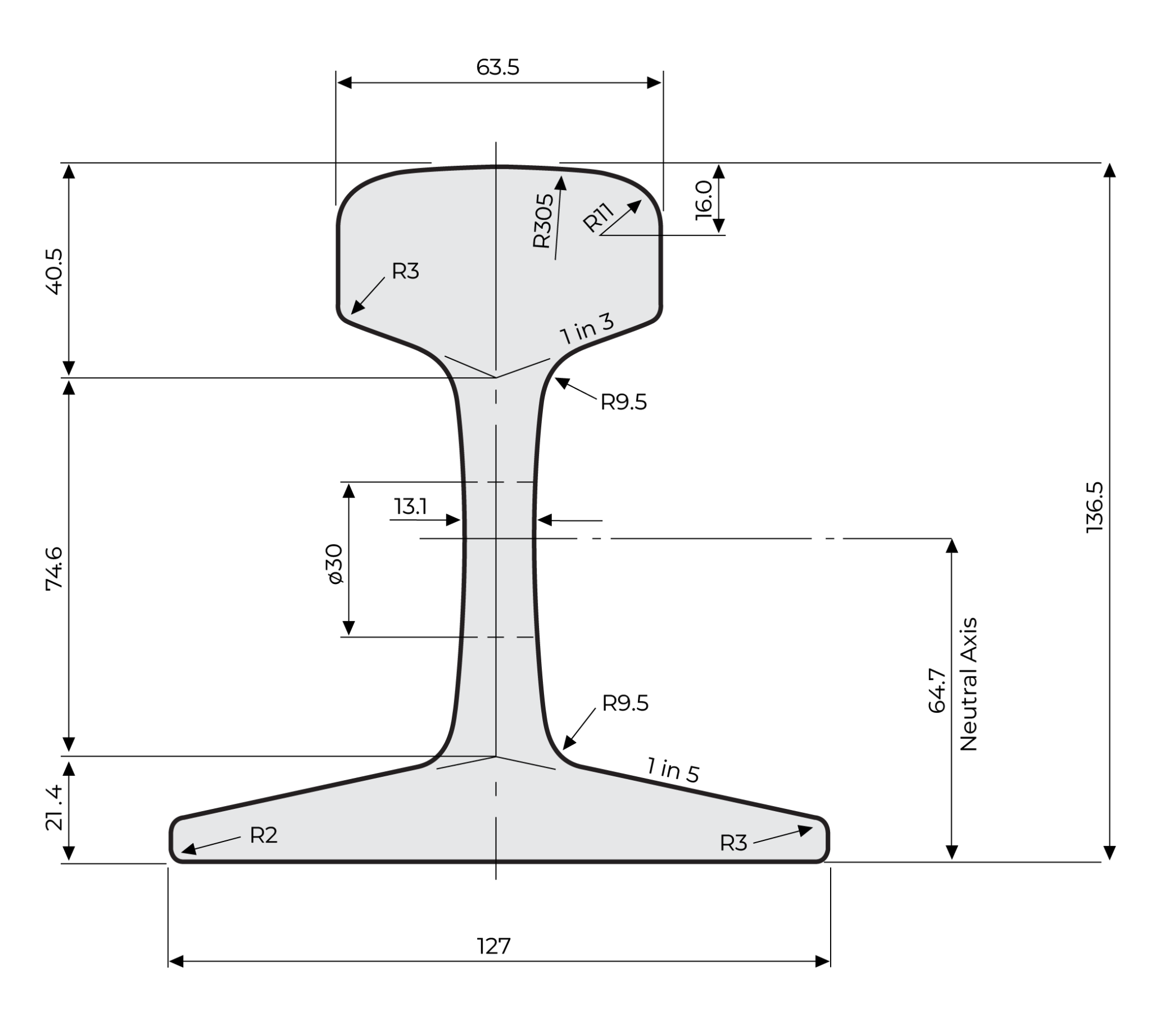

41kg AS 1085.1 standard rail supplied by Inform Rail Australia
63.5mm
Head Width
136.5mm
Height
127mm
Foot Width
13.1mm
Web
40.8
kg / metre
AS 1085.1
Standard
Applications

Where 41kg Rail is Used

The 41kg profile is the most commonly used standard rail section in Australian industry. It suits a wide range of applications from underground mining transport to workshop overhead crane runways. If you are unsure whether 41kg is the right profile for your application, send us your details and we'll advise.

Primary Use
Industrial sidings, plant-level transport corridors and underground mine service lines
Crane Runways
Workshop and light industrial overhead crane runways where standard rail is specified
Mining
Underground mining rail systems, ore transport and service rail in processing facilities
Industrial Track
Processing plant internal track, transfer car systems and industrial feeder routes
Replacement
Direct replacement for worn or damaged 41kg sections in existing installations
Not sure?
Send us your load, duty class and application and we'll confirm the right profile. Get in touch
Fastening Systems

Compatible Clips for 41kg Rail

The 41kg profile is compatible with a range of welded and bolted rail clips. Clip selection depends on your substructure type, installation method and load requirements. Send us your details and we'll advise on the right system.

Welded
M71
Two-part welded clip for 41kg installations on steel substructures. Friction connection torqued to specification.
Bolted
CL4-16
M16 through-bolt bearing clip for 41kg installations where adjustability is required.
Bolted
CL4-20
M20 through-bolt bearing clip for 41kg installations where higher bolt capacity is specified.
Bolted
CLX-20
M20 extended adjustment clip for 41kg installations requiring wider lateral alignment tolerance.
Fastening System
Full System
Matched fishplates, sole plates, rail pads and hook bolts as a complete fastening system for 41kg installations.

Not sure which clip suits your 41kg installation? Send us your substructure details and application and we'll advise on the correct clip type, size and spacing.

Standard Rail Range

Other Standard Rail Profiles

47kg
Standard rail
50kg
Standard rail
53kg
Standard rail
60kg
Standard rail
68kg
Standard rail
FAQ

41kg Rail: Common Questions

What is 41kg standard rail used for?
41kg standard rail is used for industrial sidings, underground mining rail systems, workshop overhead crane runways and plant-level transport corridors. It is the most widely used standard rail profile in Australian industry, suited to moderate load applications where light rail is too light and heavier profiles such as 47kg or 50kg are not required.
What are the dimensions of 41kg rail?
AS 1085.1 41kg rail has a head width of 63.5mm, a height of 136.5mm, a foot width of 127mm and a web thickness of 13.1mm. The mass is approximately 40.8 kg per metre. These dimensions conform to the Australian Standard AS 1085.1.
What is the difference between 41kg and 47kg rail?
The 47kg profile is heavier and has a larger cross-section than the 41kg, giving it higher load capacity and greater rigidity for more demanding applications. The 41kg is suited to moderate load applications across industry and mining. If your application involves higher axle loads, longer spans or more demanding duty, the 47kg or 50kg may be more appropriate. Send us your application details and we'll advise.
What clips are compatible with 41kg rail?
Compatible welded clips for 41kg include the M71 for steel substructure installations. Compatible bolted clips include the CL4-16, CL4-20 and CLX-20. Clip selection depends on the substructure type, installation method and load requirements. Send us your drawings or application details and we'll advise on the correct clip.
Can 41kg rail be supplied cut to length?
Yes. 41kg rail can be cut to your specified lengths prior to dispatch. Standard length is 12m. Drilling to your bolt pattern is also available. Include your cutting and drilling requirements in your enquiry.
Can Inform Rail supply a complete 41kg fastening system?
Yes. We can supply matched 41kg rail clips, fishplates, sole plates, rail pads and hook bolts as a complete package. Send us your rail profile, substructure details and any drawings and we'll quote a complete fastening system. No minimum order applies.

Need 41kg Standard Rail?

Send us your requirements, drawings or application details and we'll come back with a practical supply option.

Get a Fast Quote Call (07) 3339 3085
