47kg Standard Rail

A legacy Australian profile derived from the imperial 94 lb/yard section, supplied for like-for-like replacement on existing 47kg track on the ARTC interstate network and legacy industrial installations. Supplied Australia-wide through Brisbane and Cairns distribution with no minimum order.

Get a Fast Quote Download Product Sheet View All Standard Rail
70mm
Head Width
141.3mm
Height
127mm
Foot Width
14.3mm
Web
46.5
kg / metre
94 lb/yd
Imperial Origin
Standard Rail, Legacy Profile

47kg Standard Rail, Supplied Across Australia

Inform Rail supplies 47kg standard rail for like-for-like replacement on existing 47kg track across Australia, through Brisbane and Cairns distribution. The 47kg is the metric equivalent of the imperial 94 lb/yard rail section and is classified as a legacy profile, absent from the current AS1085.1-2002 standard. The profile is sometimes written 47 kg rail, 47kg/m rail or specified by its imperial designation, 94 lb rail.

The 47kg remains in service on portions of the ARTC interstate network and legacy industrial infrastructure, where replacing in kind is preferred over the cost and complexity of upgrading to a heavier section. For new construction or major rehabilitation, network owners typically specify an active profile such as 50kg or 60kg instead. For full background on this profile, read our article 47kg and 53kg Rail in Australia, From Imperial Roots to Modern Networks.

Rail is supplied in a standard length of 12 metres, with cut-to-length and drilling to your bolt pattern available prior to dispatch. Matched fastening systems including clips, fishplates, sole plates and rail pads can be supplied to suit the profile and substructure.

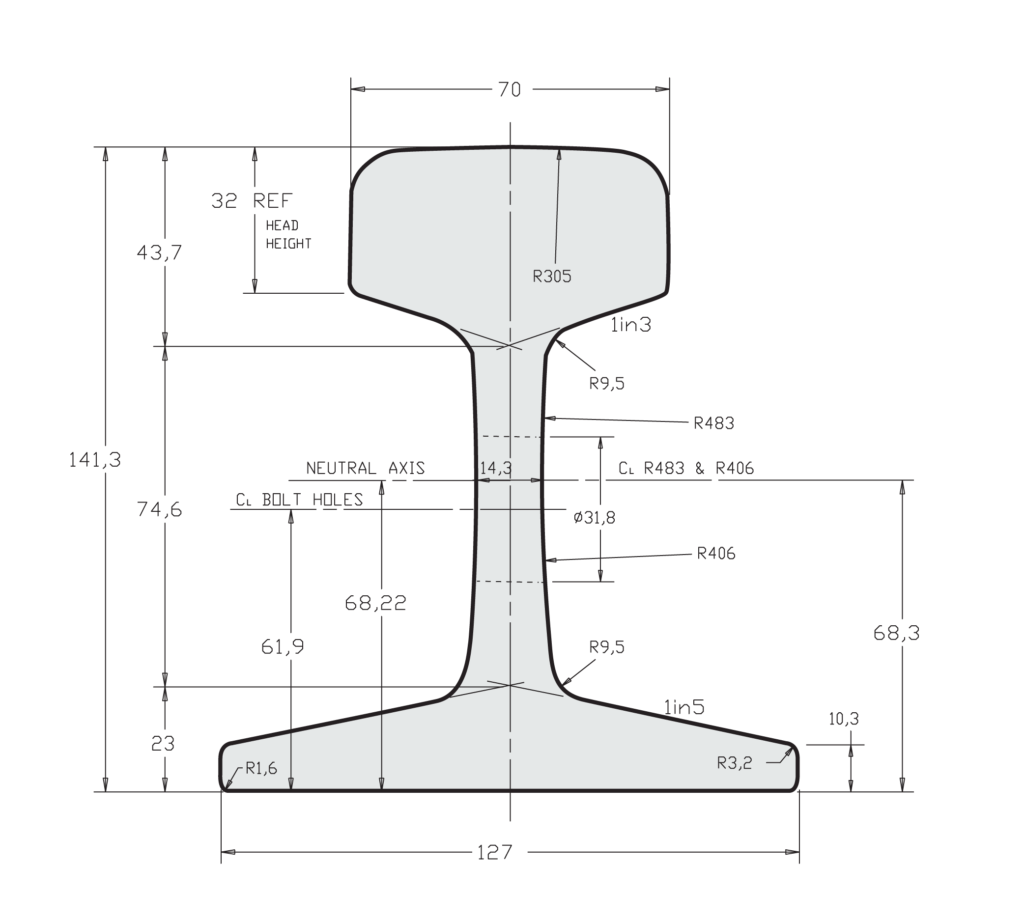

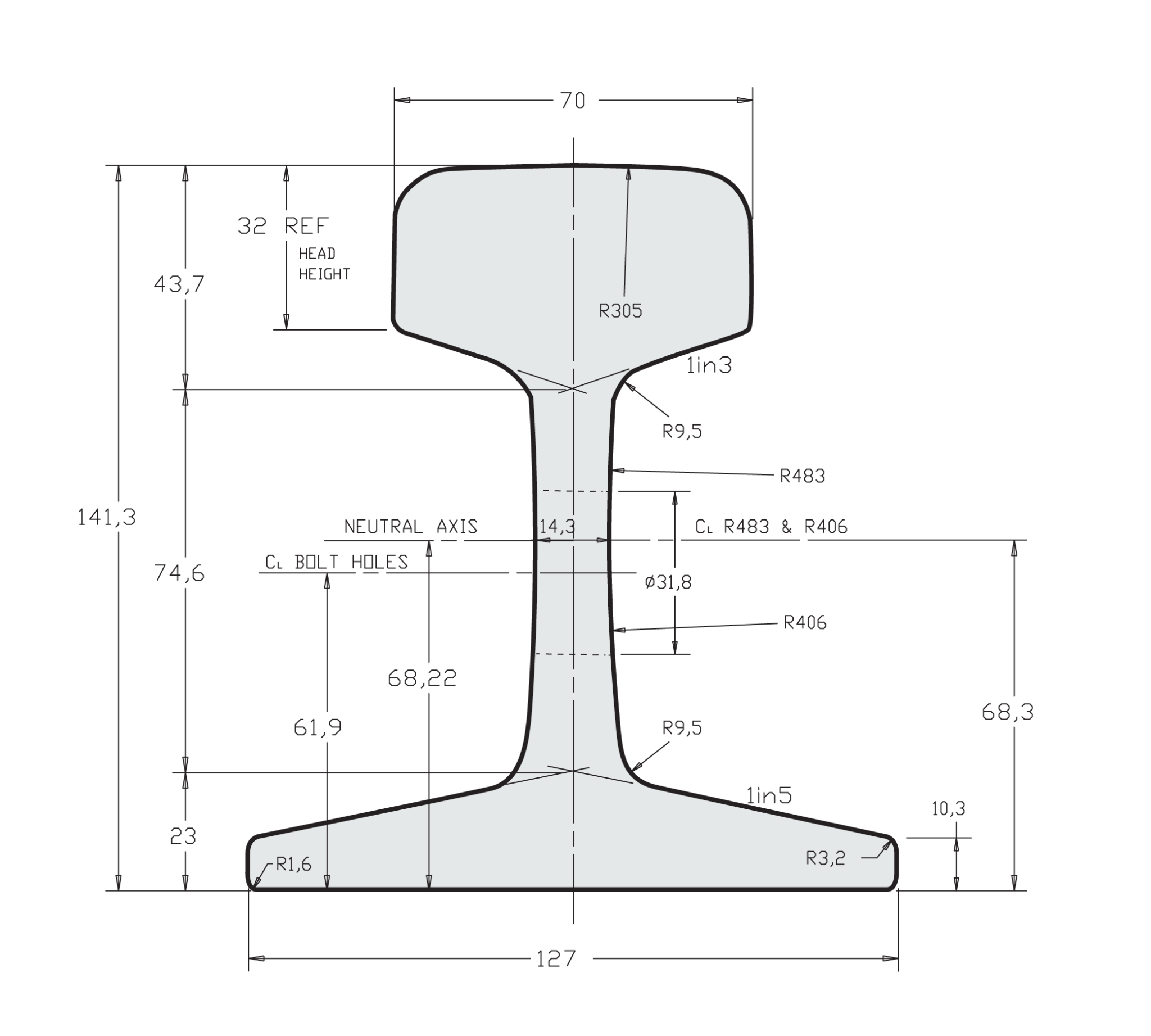

47kg legacy standard rail supplied by Inform Rail Australia

47kg Rail at a Glance

Mass46.5 kg/m
Head70mm wide
Height141.3mm
Foot127mm wide
Web14.3mm
OriginImperial 94 lb/yard, metricated
StatusLegacy profile, like-for-like replacement
Length12m standard, cut to length available
SupplyBrisbane and Cairns distribution, no minimum order
Applications

Where 47kg Rail is Used

A legacy profile primarily used for like-for-like replacement on existing 47kg track, not typically specified for new construction. If you are unsure whether to replace in kind or upgrade to a current standard profile, send us your details and we will advise.

Primary Use
Like-for-like replacement on portions of the ARTC interstate network and legacy industrial 47kg track
Crane Runways
Legacy industrial crane runways and overhead rail systems originally installed with 47kg section
Freight Networks
Secondary freight routes and feeder lines on networks where 47kg track is maintained in kind
Industrial Track
Industrial sidings and plant-level track where 47kg is the existing installed profile
Replacement
Like-for-like replacement of worn 47kg track without upgrading to 50kg or 53kg
Not sure?
If you are unsure whether to replace in kind or upgrade to 50kg or 53kg, send us your application details and we will advise. Get in touch
Fastening Systems

Compatible Clips for 47kg Rail

The 47kg profile is compatible with a range of welded and bolted rail clips. Clip selection depends on your substructure type, installation method and load requirements. Send us your details and we'll advise on the right system.

Welded
M71
Two-part welded clip for 47kg installations on steel substructures. Friction connection torqued to specification.
Bolted
CL4-16
M16 through-bolt bearing clip for 47kg installations where adjustability is required.
Bolted
CL4-20
M20 through-bolt bearing clip for 47kg installations where higher bolt capacity is specified.
Bolted
CLX-20
M20 extended adjustment clip for 47kg installations requiring wider lateral alignment tolerance.
Bolted
CLX-24
M24 heavy duty clip for 47kg installations with high lateral loads and extended adjustment needs.
Fastening System
Full System
Matched fishplates, sole plates, rail pads and hook bolts as a complete fastening system for 47kg installations.

Not sure which clip suits your 47kg installation? Send us your substructure details and application and we'll advise on the correct clip type, size and spacing.

Standard Rail Range

Other Standard Rail Profiles

The full Australian standard rail range from 41kg to 68kg, supplied with matched fastening systems.

41kg
Standard rail
50kg
Standard rail
53kg
Standard rail
60kg
Standard rail
68kg
Standard rail
FAQ

47kg Rail, Common Questions

What is 47kg standard rail used for?
47kg standard rail is commonly used for like-for-like replacement on existing 47kg track. It is the metric equivalent of the imperial 94 lb/yard profile and is a legacy section absent from the current AS1085.1-2002 standard. It remains on portions of the ARTC interstate network and legacy industrial infrastructure, where replacing in kind is preferred over the cost and complexity of upgrading to a heavier profile.
What are the dimensions of 47kg rail?
47kg rail has a head width of 70mm, a height of 141.3mm, a foot width of 127mm and a web thickness of 14.3mm. The mass is approximately 46.5 kg per metre, and the profile is sometimes written 47 kg rail, 47kg/m rail or 94 lb rail.
What is the difference between 47kg and 41kg rail?
The 47kg is slightly heavier than the 41kg and derives from a different lineage, the imperial 94 lb/yard section metricated to 47kg, whereas the 41kg is an active AS1085.1 profile. The 47kg is used mainly for replacement on legacy track. The 41kg suits new industrial applications. For new construction requiring more capacity than 41kg, the 50kg or 53kg are typically specified instead of 47kg. Send us your application details and we'll advise.
What clips are compatible with 47kg rail?
Compatible welded clips for 47kg include the M71 and M120 for steel substructure installations. Compatible bolted clips include the CL4-16, CL4-20, CLX-20 and CLX-24. Clip selection depends on the substructure type, installation method and load requirements. Send us your drawings or application details and we'll advise on the correct clip.
Can 47kg rail be supplied cut to length?
Yes. 47kg rail is supplied in a standard length of 12m and can be cut to your specified lengths prior to dispatch. Drilling to your bolt pattern is also available. Include your cutting and drilling requirements in your enquiry.
Where can I buy 47kg rail in Australia?
Inform Rail supplies 47kg standard rail Australia-wide through its Brisbane and Cairns distribution, from single lengths to full project quantities with no minimum order. Send your lengths and quantities through the Inform Rail Easy Quote form or call (07) 3339 3085 for a fast supply price.
Can Inform Rail supply a complete 47kg fastening system?
Yes. We can supply matched 47kg rail clips, fishplates, sole plates, rail pads and hook bolts as a complete package. Send us your rail profile, substructure details and any drawings and we'll quote a complete fastening system. No minimum order applies.
