Rail Products — Crane Rail, Standard Rail & Light Rail

Inform Rail supplies crane rail, standard rail and light rail for industrial projects across Australia. Stock in Brisbane and Cairns, cut-to-length available and no minimum order.

Rail Products

Crane Rail, Standard Rail & Light Rail — Supplied Across Australia

Inform Rail supplies crane rail, standard rail and light rail for industrial and infrastructure projects across Australia, with stock held in Brisbane and Cairns for fast dispatch nationwide. We source the full range of A-series crane rail, Australian standard rail profiles and light rail sections, with cut-to-length and drilling services available.

All rail is manufactured to meet relevant standards. Whether you're installing a new overhead crane runway, replacing worn track in an industrial facility or sourcing replacement rail for an older installation, we can help with the right profile and matching fastening components.

Crane Rail

DIN 536 crane rail for overhead crane runways, gantry cranes and heavy industrial applications.

A45A55A65A75A100A120

View Crane Rail →

Standard Rail

Australian standard rail and AREMA profiles for mainline and industrial track applications.

41kg47kg50kg53kg60kg68kg

View Standard Rail →

Light Rail

Light rail profiles for workshop track, materials handling systems and low-speed industrial applications.

10kg15kg22kg30kg37kg

View Light Rail →

Crane Rail

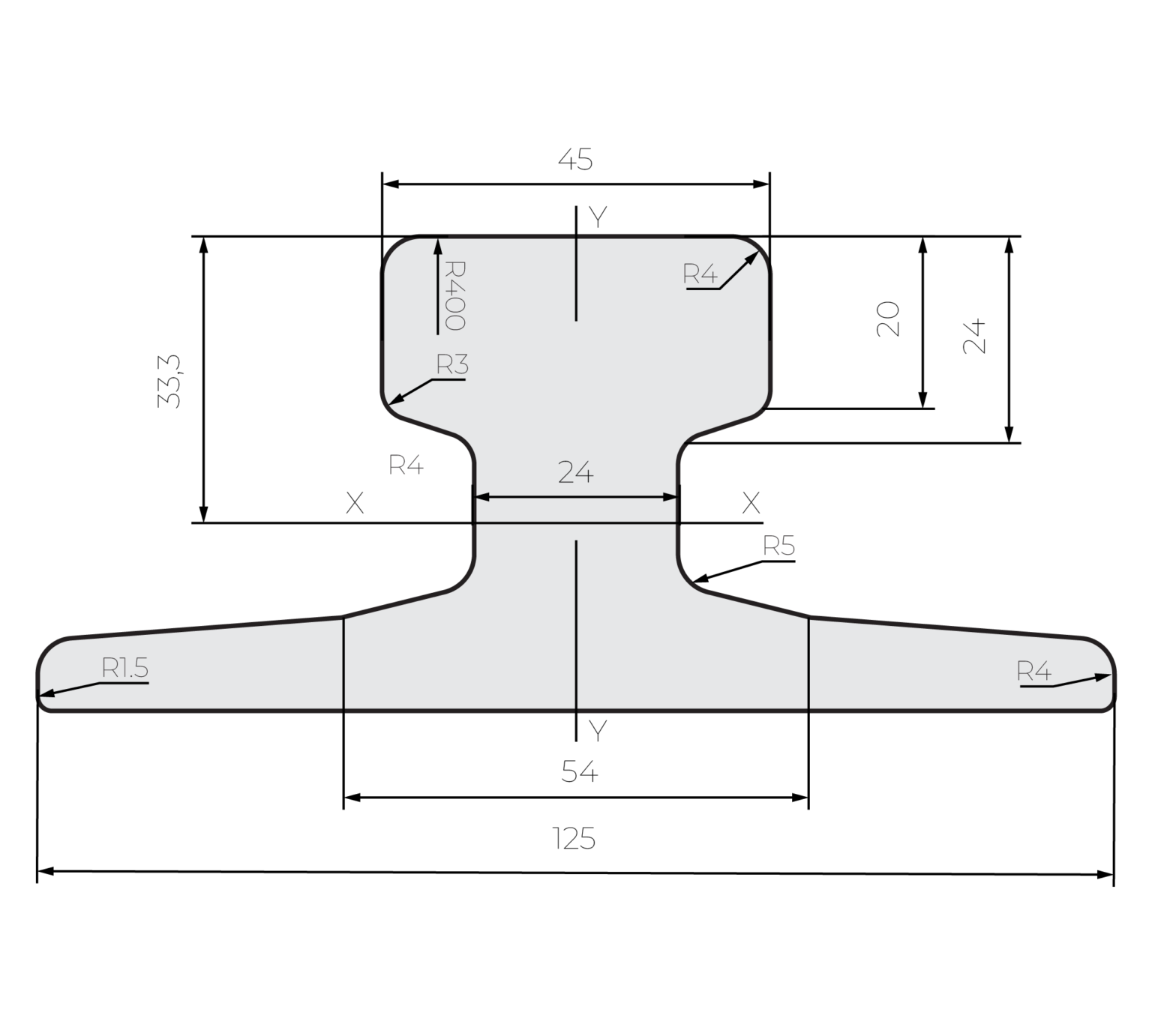

Crane Rail — A45 to A120

DIN 536 A-series crane rail is the standard profile for overhead crane runways, gantry cranes, container handling and heavy industrial applications across Australia. The DIN 536 profile features a distinctive wide head geometry engineered specifically for crane wheel contact, distributing loads across a wide contact area and reducing stress in the rail and supporting structure.

We source the most commonly specified A-series profiles from qualified international mills. Other crane rail profiles are available on request. Matched fastening systems including clips, pads, fishplates and sole plates can be supplied to suit each profile.

A45

Light duty

A55

Light-medium

A65

Medium duty

A75

Medium-heavy

A100

Heavy duty

A120

Very heavy duty

View Crane Rail

Crane Rail Applications

Ports & terminalsContainer cranes, ship-to-shore cranes, straddle carriers and port gantry systems

Overhead cranesSingle and double girder crane runways in warehouses and workshops

Gantry cranesPortal and semi-portal gantry systems in shipyards and fabrication yards

Heavy industryHigh-load crane runways in industrial facilities

Special profilesMRS87A and other profiles available on request

Standard Rail

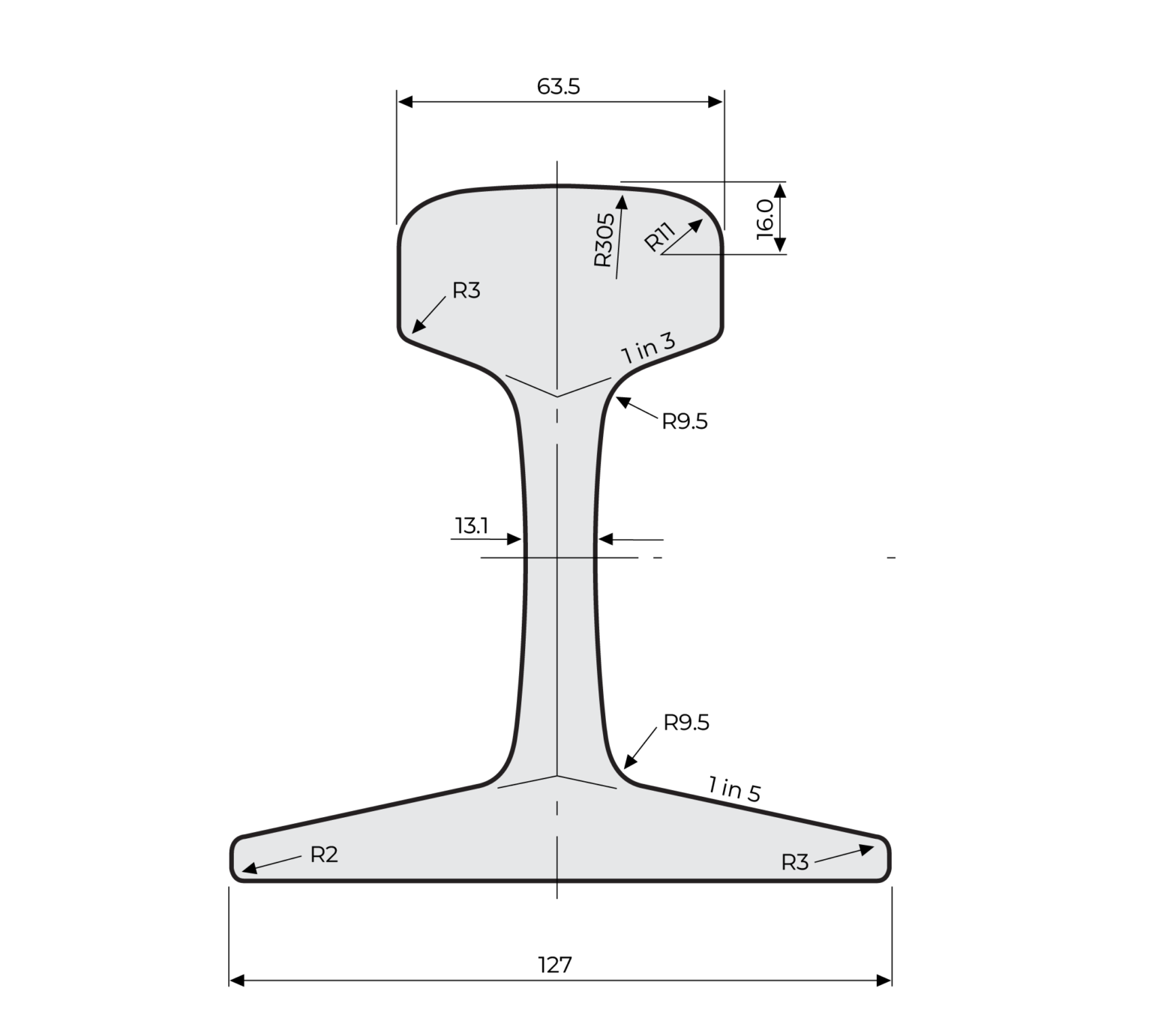

Standard Rail — 41kg to 68kg

Mid to heavy-weight rail profiles for mainline and industrial track applications. Australian standard profiles run from 41kg through to 68kg. Other profiles including AREMA specifications are available on request.

Head hardened rail is available for high-wear applications. Standard rail is supplied in standard lengths with cut-to-length available on request.

41kg

47kg

50kg

53kg

60kg

68kg

View Standard Rail

Standard Rail Applications

Stacker reclaimersMining and bulk handling equipment running on standard rail profiles

MiningBulk materials handling, conveyor transfer systems and mine site infrastructure

Industrial trackWarehouses, fabrication facilities and heavy industrial floor track

Head hardenedAvailable for high-wear and high-cycle applications

41kgMost widely used AS profile in Australian industrial networks

Light Rail

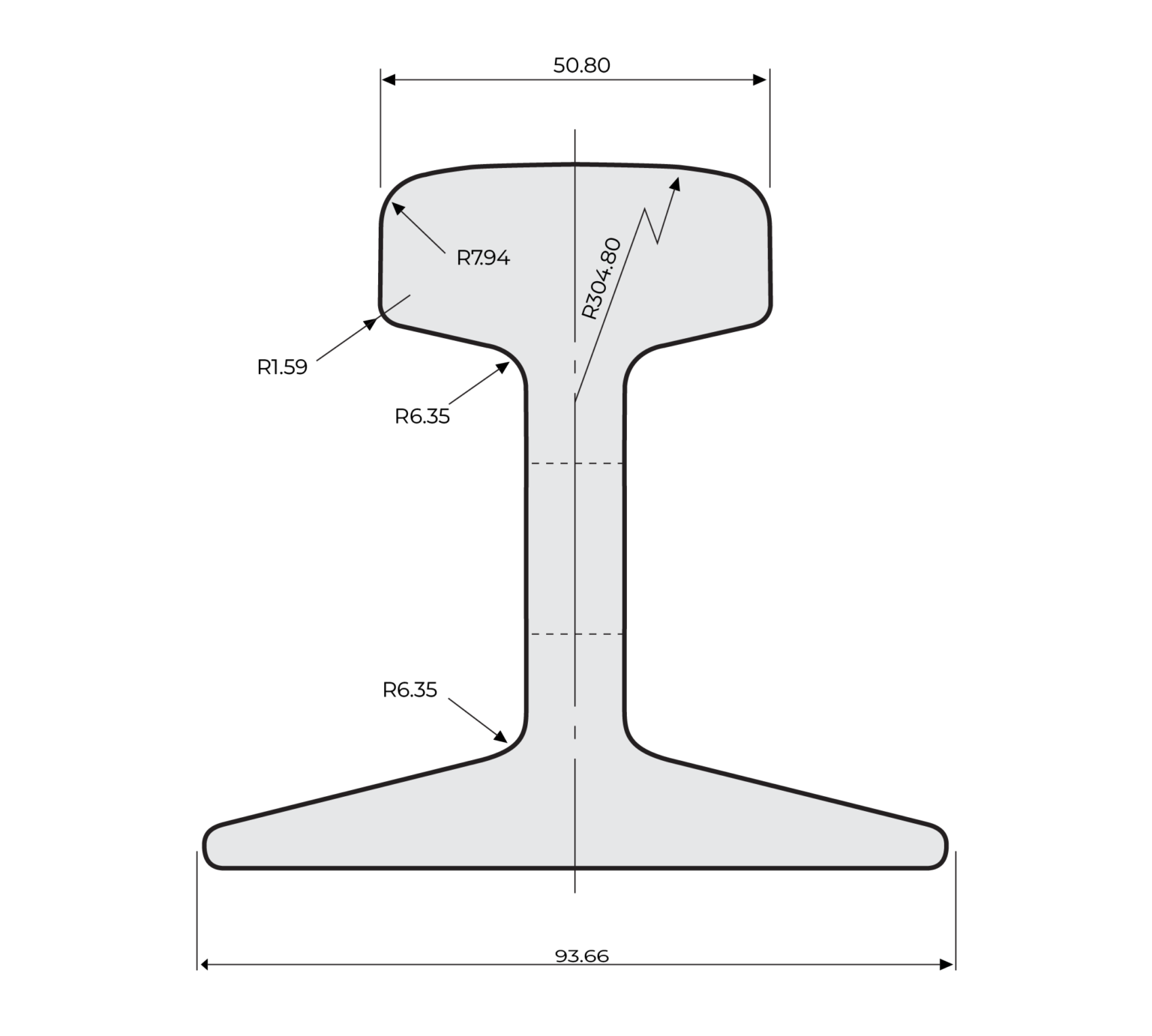

Light Rail — 10kg to 37kg

Light rail profiles for workshop track, materials handling systems, fabrication yards and low-speed industrial applications. JIS profiles from 10kg to 37kg are widely used in workshops, storage facilities and light industrial environments across Australia.

Also commonly used for replacement track in older facilities running legacy rail profiles. We can help identify the right modern equivalent if you're replacing out-of-production sections.

10kg

15kg

22kg

30kg

37kg

View Light Rail

Light Rail Applications

Workshop trackManual trolleys, hand-pushed carts and light overhead systems

Materials handlingConveyor systems, transfer cars and light guided vehicles

Fabrication yardsPositioning track for welding and assembly operations

Storage facilitiesRacking systems and guided storage equipment

ReplacementModern equivalent for BHP 31kg and other legacy profiles

Block Rail

Block Rail — Flat Bar Crane Rail

Block rail, also known as flat bar crane rail or guide rail, is a simple rectangular steel section used for light overhead crane trolleys and guided equipment in workshops, warehouses and industrial facilities. It combines precision guidance with the structural integrity required for automation, robotics, gantries and overhead crane applications.

We supply globally recognised block rail profiles and steel grades to suit project requirements.

50×30

60×40

70×40

80×60

100×60

View Block Rail

Block Rail Uses

Overhead cranesLight trolley systems in workshops and warehouses

AutomationGuided robotics, automated storage and retrieval systems

GantriesLight gantry systems and jib crane tracks

Material handlingTransfer cars, pallet movers and guided carts

Rail Lengths & Cutting

Cut-to-Length Rail & Drilling

Standard crane rail is typically supplied in 6m, 9m or 12m lengths depending on the profile and manufacturer. Where these lengths don't suit your installation, we can arrange rail cut to your specified lengths prior to dispatch, reducing on-site cutting time and waste.

Rail can also be drilled to your specified bolt pattern prior to dispatch using our PRO NM-360 cordless rail drilling machine, ideal for projects where on-site drilling is impractical or time-critical.

Square and angled cut ends available
Tight length tolerances for precise installation
Holes up to 36mm drilled to your bolt pattern
Available across crane rail, standard and light rail profiles
Specify requirements in your enquiry

View Rail Services

Standard Supply Lengths

6 metresShort lengths, common for replacement and repair work

9 metresMid-length, common for industrial installations

12 metresFull lengths, standard for new runway installations

CustomCut to your specified length prior to dispatch

DrilledBolt holes drilled to your pattern before dispatch

FAQ

Rail Products: Common Questions

What rail profiles do you supply in Australia?

We supply DIN 536 A-series crane rail (A45 to A120), Australian standard rail (41kg to 68kg), light rail (10kg to 37kg) and block rail. Other profiles including AREMA specifications and special sections are available on request. Distribution from Brisbane and Cairns for fast dispatch nationwide.

What is the difference between A-series crane rail and standard rail?

A-series crane rail (DIN 536) has a unique wide head geometry engineered specifically for crane wheel contact. The profile is designed to carry the concentrated loads of overhead crane wheels. Standard rail has a narrower head suited to flanged wheels on conventional track. Crane rail is used for overhead crane runways; standard rail is used for industrial track, mainline and mining applications.

What crane rail profile do I need for my overhead crane?

The right profile depends on your crane's wheel load, span and duty class. As a starting point, A45 and A55 suit lighter duty overhead cranes, A65 and A75 cover mid-range industrial cranes, and A100 and A120 are used for heavy duty and port applications. Send us your crane details or drawings and we'll advise on the appropriate profile and fastening system.

Can you help replace obsolete or out-of-production rail?

Yes. This is one of our most common enquiries. If you have the rail dimensions, a section reference or a photo, we can usually identify the profile and recommend a compatible modern replacement with matching fastening components. BHP 60lb (31kg) rail is a common example we assist with regularly.

How long does delivery take?

Most stock is held in Brisbane, enabling fast packing and dispatch. Delivery timeframes depend on your location and the profile and we can advise at the time of enquiry. We deliver across Australia by road or rail. For urgent requirements, let us know and we'll do our best to prioritise.

Do you have a minimum order?

No minimum order. We support single lengths, small orders and urgent project requirements, even at short notice. Stock is held in Brisbane and Cairns for fast dispatch Australia-wide.

Need Rail for Your Project?

Send us your rail profile, dimensions or project details and we'll come back with a practical supply option.
