A45 Crane Rail — DIN 536

The most compact profile in the crane rail range, suited to light duty overhead crane systems. Supplied with matched clips and fastening systems.

Get a Fast Quote View All Crane Rail Download Product Sheet
Crane Rail — DIN 536

A45 Crane Rail — Supplied Across Australia

Inform Rail supplies DIN 536 A45 crane rail for light duty overhead crane runways and industrial applications across Australia. The A45 is the most compact profile in the crane rail range, suited to lighter overhead crane systems in workshops, small fabrication facilities and low-load industrial environments.

The A45 features a 45mm head width with the characteristic crane rail geometry that provides stable wheel guidance under light to moderate loads. Matched fastening systems including clips, pads, fishplates and sole plates can be supplied to suit the profile.

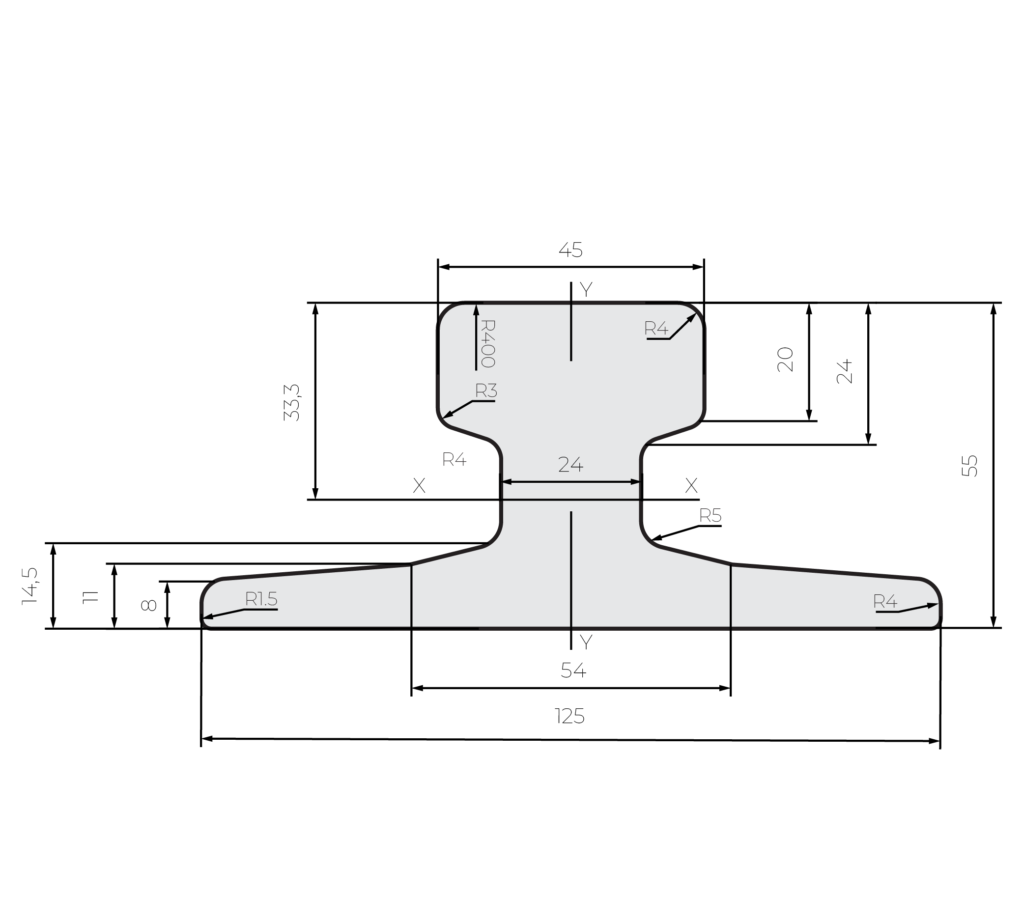

A45 DIN 536 crane rail — Inform Rail Australia
45mm
Head Width
55mm
Height
125mm
Foot Width
24mm
Web
22.1
kg / metre
DIN 536
Standard
Applications

Where A45 Crane Rail is Used

The A45 is the lightest profile in the DIN 536 range, suited to light duty overhead crane systems where wheel loads are relatively low. If you are unsure whether A45 is the right profile for your application, send us your crane details and we'll advise.

Primary Use
Light duty overhead crane runways in small workshops and light industrial facilities
Crane Type
Single girder crane systems with relatively low wheel loads
Environments
Light fabrication facilities and assembly operations
Replacement
Direct replacement for worn or damaged A45 runway sections
New Installations
Complete crane runway systems with matched fastening components
Not sure?
Send us your wheel load, span and duty class and we'll confirm the right profile. Get in touch
Fastening Systems

Compatible Rail Clips for A45

The A45 profile is compatible with both welded and bolted crane rail clips suited to lighter duty applications. Clip selection depends on your installation method, substructure and load requirements.

Welded
M71
Two-part welded clip for light duty A45 installations. The most commonly supplied welded clip for smaller crane rail profiles.
Bolted
CL3-12
M12 through-bolt clip for light duty A45 installations where adjustability is required.
Bolted
CL4-16
M16 through-bolt clip for A45 installations requiring a higher bolt capacity than the CL3-12.
Bolted
CL4-20
M20 through-bolt clip suitable for A45 and other smaller crane rail profiles where a standard M20 bolt is specified.
Fastening System
Full System
Matched fishplates, sole plates, rail pads and hook bolts supplied as a complete fastening system for A45 installations.

Not sure which clip suits your A45 installation? Send us your drawings or application details and we'll advise on the correct clip type, size and spacing.

Crane Rail Range

Other Crane Rail Profiles

A55
Light–medium
A65
Medium duty
A75
Medium–heavy
A100
Heavy duty
A120
Very heavy duty
FAQ

A45 Crane Rail: Common Questions

What is A45 crane rail used for?
A45 crane rail is used for light duty overhead crane runways in small workshops, light fabrication facilities and industrial environments where wheel loads are relatively low. It is the most compact profile in the DIN 536 crane rail range and is suited to single girder overhead crane systems with lighter loading conditions.
What are the dimensions of A45 crane rail?
DIN 536 A45 crane rail has a head width of 45mm, a height of 55mm, a foot width of 125mm and a web thickness of 24mm. The mass is approximately 22.1 kg per metre. These dimensions are defined by the DIN 536 standard and are consistent across compliant manufacturers.
What clips are compatible with A45 crane rail?
Compatible welded clips for A45 include the M71, which is the most commonly supplied welded clip for lighter crane rail profiles. Compatible bolted clips include the CL3-12, CL4-16 and CL4-20. Clip selection depends on the installation method, substructure type and load requirements. Send us your drawings or crane details and we'll advise on the correct clip.
Is A45 the right profile for my overhead crane?
A45 is suited to light duty overhead crane systems where wheel loads are low. If your crane has moderate to higher wheel loads, A55 or A65 may be more appropriate. The correct profile depends on wheel load, crane duty class, runway span and support spacing. Send us your crane specification and we'll advise on whether A45 is suitable or whether a larger section is needed.
Can A45 crane rail be supplied cut to length?
Yes. A45 crane rail can be cut to your specified lengths prior to dispatch. Standard lengths are 12m. Drilling to your bolt pattern is also available. Include your cutting and drilling requirements in your enquiry.
Can Inform Rail supply a complete A45 fastening system?
Yes. We can supply matched A45 crane rail clips, fishplates, sole plates, rail pads and hook bolts as a complete package. Send us your rail profile, substructure details and any drawings and we'll quote a complete fastening system. No minimum order applies.

Need A45 Crane Rail?

Send us your requirements, drawings or project details and we'll come back with a practical supply option.
