Standard Rail

Inform Rail supplies Australian standard rail profiles from 41kg to 68kg for mining, stacker reclaimers, industrial track and infrastructure projects across Australia.

Email Direct (07) 3339 3085
Standard Rail

Standard Rail — 41kg to 68kg, Supplied Across Australia

Inform Rail supplies Australian standard rail from 41kg to 68kg for mining, stacker reclaimers, industrial track and infrastructure projects across Australia. We source profiles to Australian standard (AS) specifications, with AREMA 136RE available.

41kg is the most widely used standard rail profile in Australian industrial applications. Head hardened rail is available for high-wear and high-cycle applications. Cut-to-length is available across all profiles and no minimum order applies.

41kg Australian standard rail supplied by Inform Rail

Standard Rail at a Glance

Profiles41kg, 47kg, 50kg, 53kg, 60kg, 68kg, 136RE
StandardAS — Australian Standard specification
SupplyStandard lengths or cut to your specification
Head hardenedAvailable for high-wear applications
Min. orderNo minimum. Single lengths welcome
Profiles

Standard Rail Profiles — 41kg to 68kg

Select a profile for dimensions, specifications and supply details.

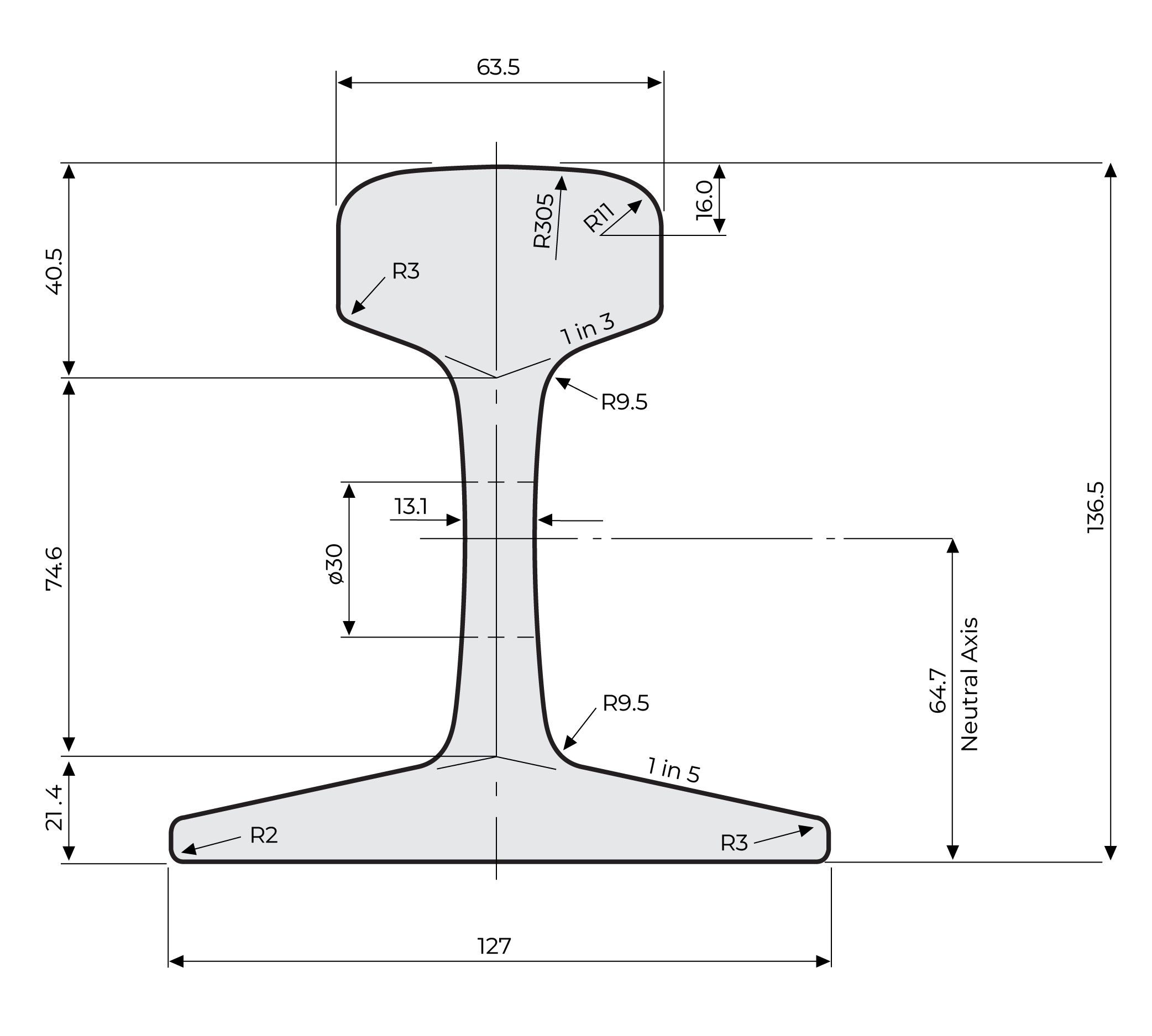

41kg standard rail Inform Rail Australia
41kg
Most Widely Used

The most widely specified standard rail profile in Australian industrial applications including workshops, fabrication and industrial track.

View 41kg Rail →

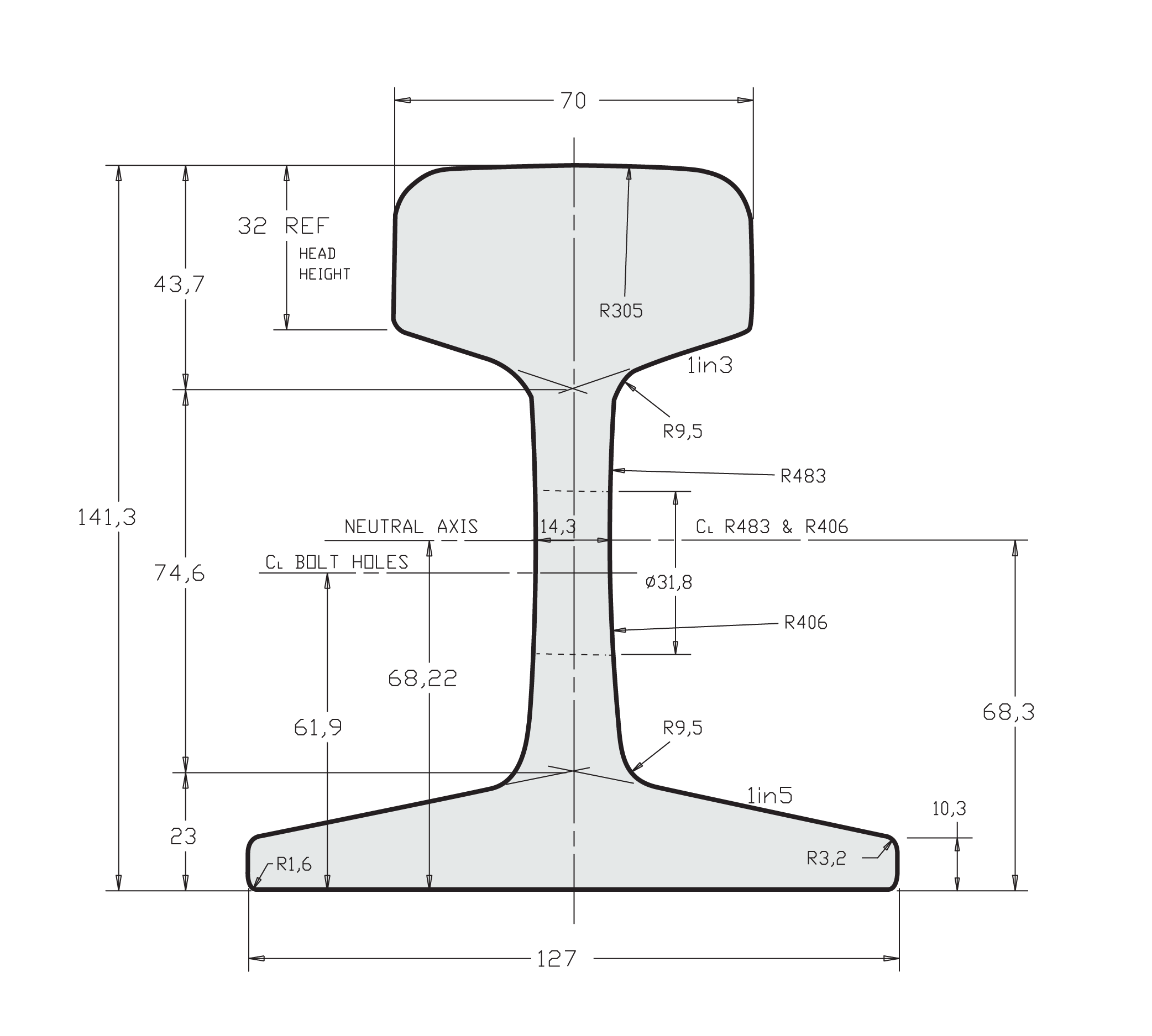

47kg standard rail Inform Rail Australia
47kg
Medium Duty

Medium weight standard rail for industrial track, stacker reclaimer runways and mainline applications.

View 47kg Rail →

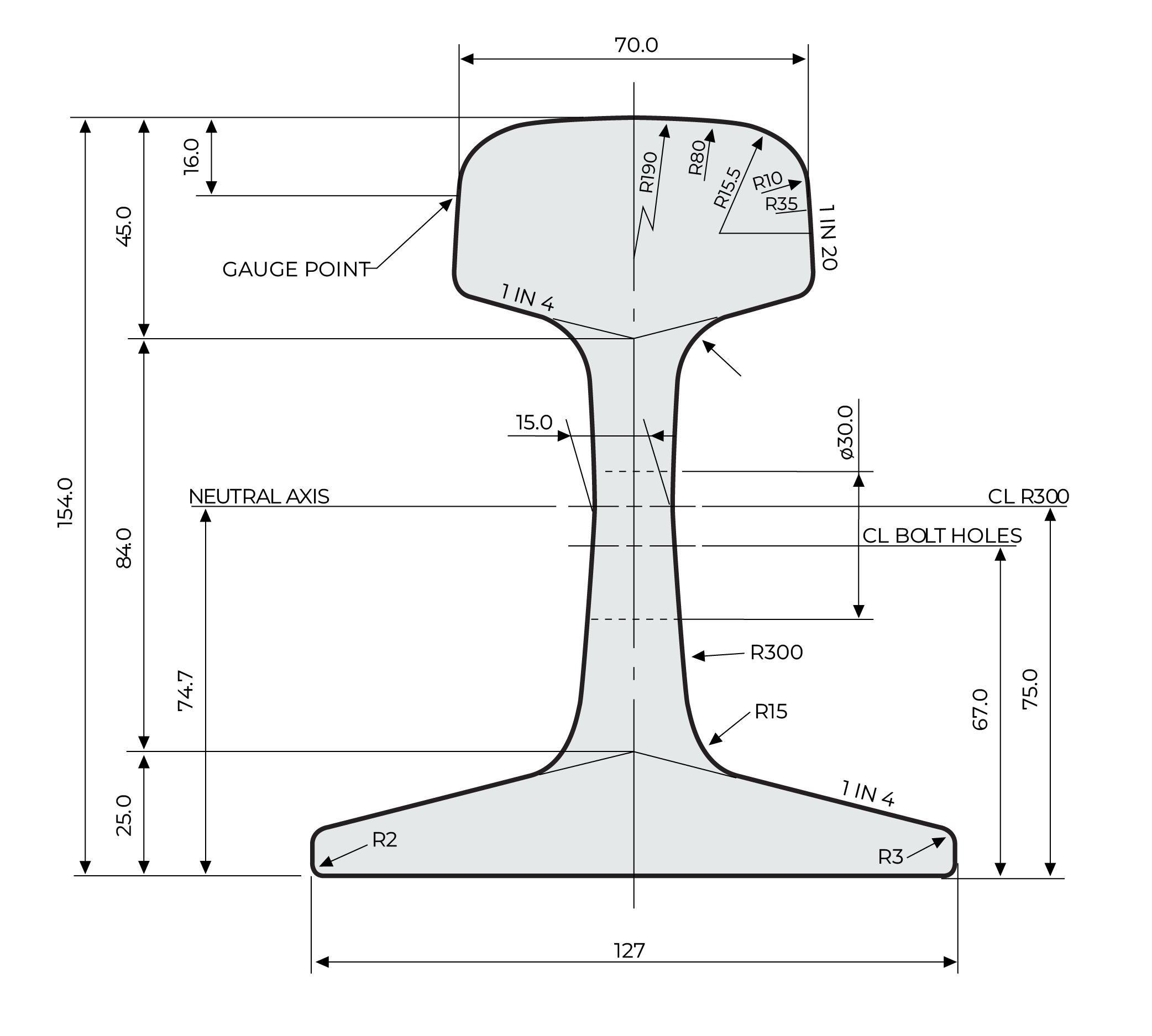

50kg standard rail Inform Rail Australia
50kg
Medium–Heavy Duty

Medium to heavy duty standard rail for demanding industrial track and infrastructure applications.

View 50kg Rail →

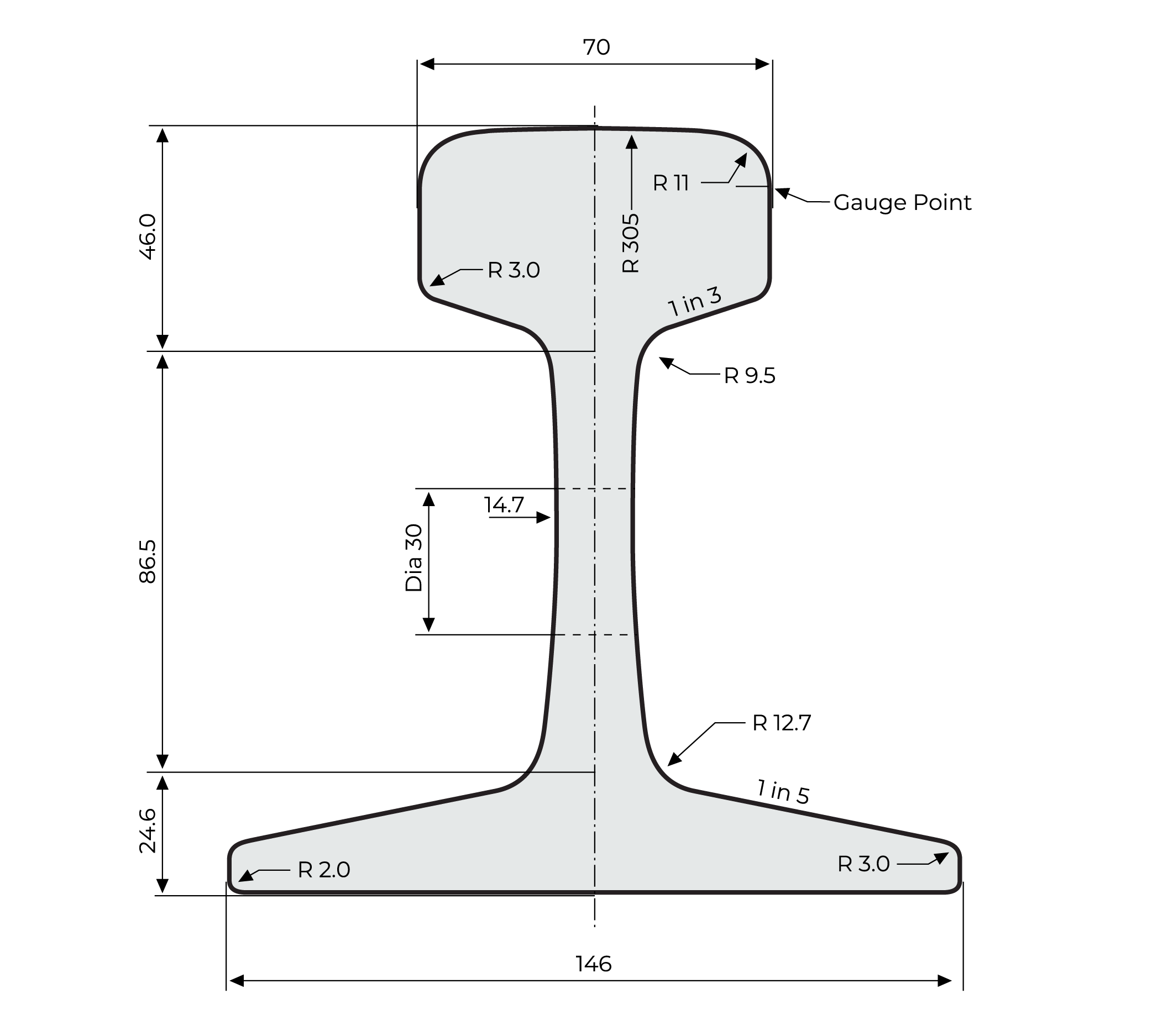

53kg standard rail Inform Rail Australia
53kg
Heavy Duty

Heavy duty standard rail widely used across Australian mining, bulk handling and mainline infrastructure.

View 53kg Rail →

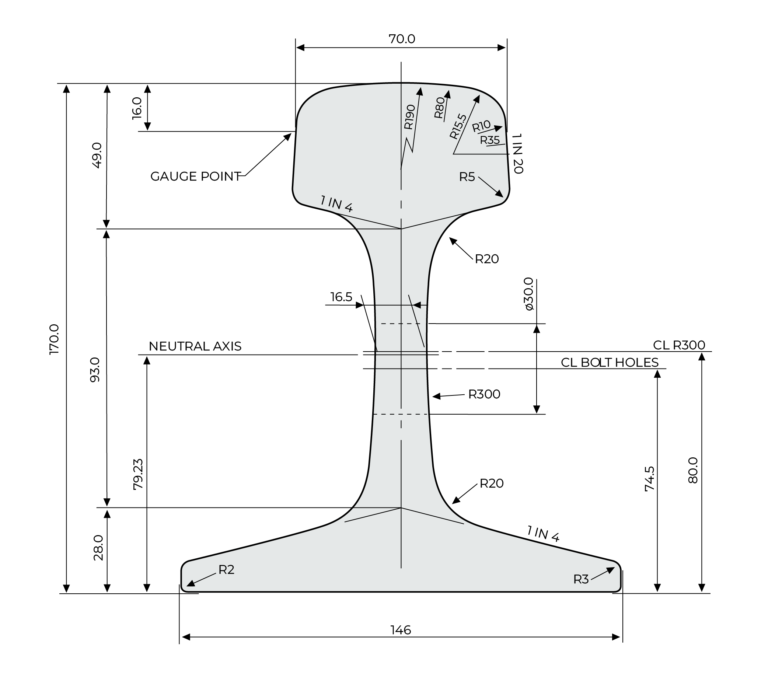

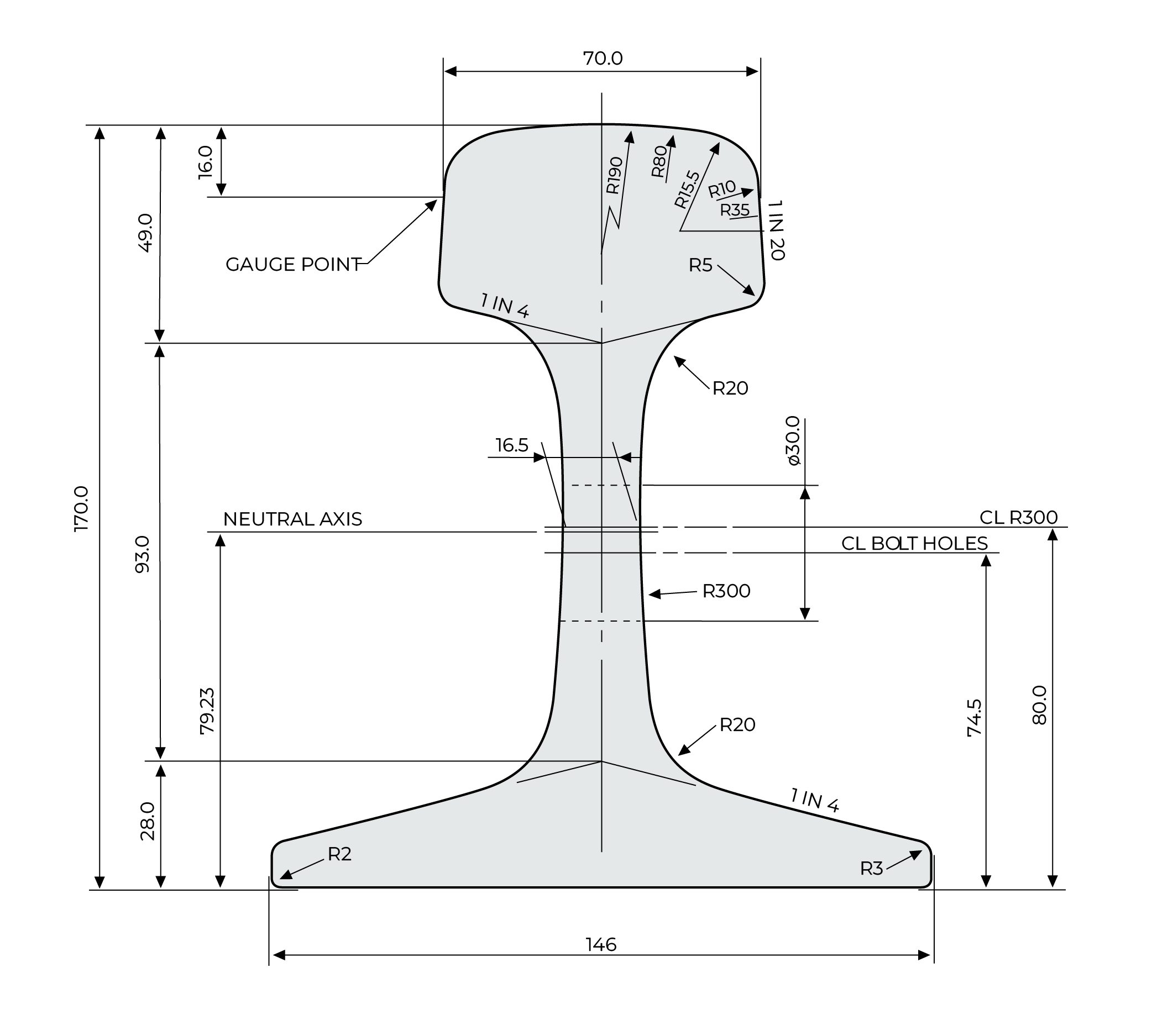

60kg standard rail Inform Rail Australia
60kg
Heavy Duty

Heavy duty standard rail for high-load mining, stacker reclaimer and heavy industrial applications.

View 60kg Rail →

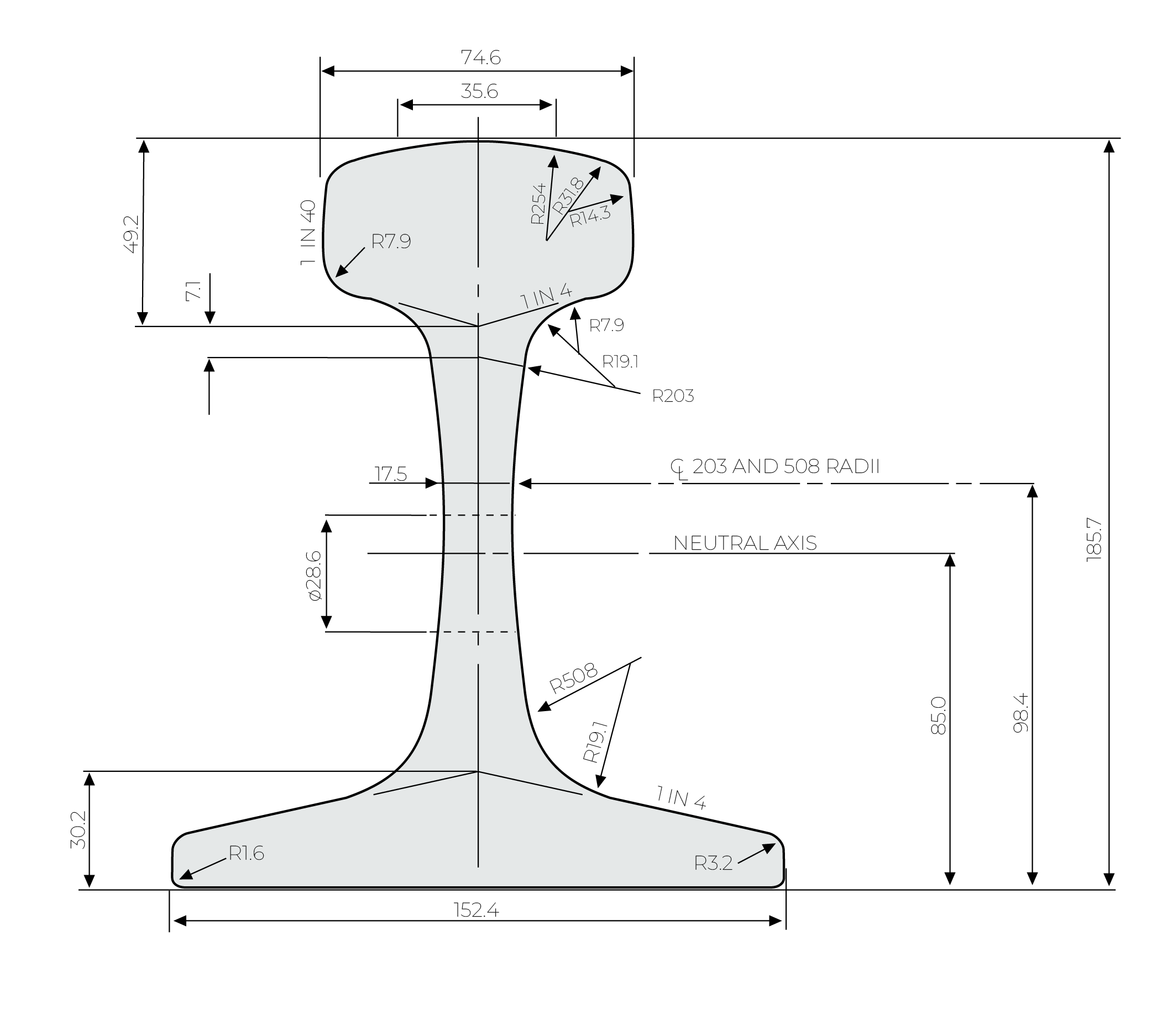

68kg standard rail Inform Rail Australia
68kg
Very Heavy Duty

Heaviest AS standard profile, used in the most demanding mining, bulk handling and heavy haul applications.

View 68kg Rail →

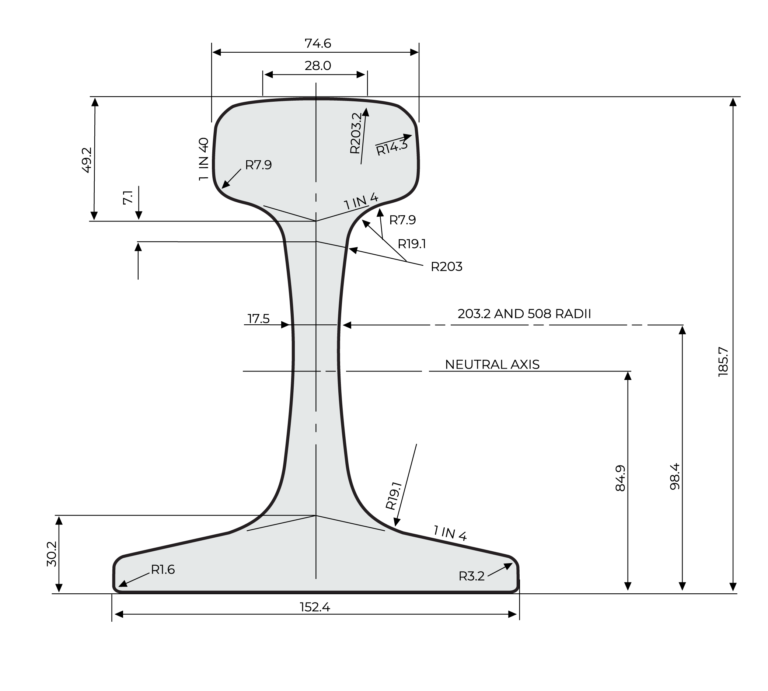

136RE AREMA rail Inform Rail Australia
136RE
AREMA

American specification rail to AREMA standard.

View 136RE Rail →
About Standard Rail

What is Standard Rail?

Standard rail refers to the mid to heavy-weight flat-bottom rail profiles used in mainline track, mining operations, industrial floor track and bulk handling systems. In Australia, standard rail profiles follow the AS (Australian Standard) specification, which defines the cross-sectional geometry, head and foot dimensions, and material grades for each weight class.

Standard rail differs from crane rail in both profile shape and application. Where crane rail has a wide unique head geometry for crane wheel contact, standard rail has a narrower head suited to flanged wheels on conventional track systems including locomotive-hauled equipment, stacker reclaimers, transfer cars and heavy industrial floor track.

Head hardened rail is available across selected profiles for applications where higher surface hardness is required to resist wear, common in mining, high-cycle industrial track and bulk handling environments.

  • Mining operations including haul road track, underground mining and mine site infrastructure
  • Ports and bulk handling including transfer equipment and bulk commodity handling systems
  • Industrial floor track for heavy transfer cars, fabrication and assembly systems
  • Mainline and branch line infrastructure and network maintenance works
  • Heavy industrial floor track in demanding industrial environments

Choosing the Right Profile

LoadHigher wheel loads require a heavier section — 53kg upward for heavy mining applications
ApplicationStacker reclaimers typically run 47kg to 68kg, while floor track often uses 41kg
Head hardenedSpecify if the application involves high-cycle or abrasive conditions
ReplacementMatch the existing section by weight and AS designation where possible
Not sure?Send us your drawings or application details and we'll advise
Profile Guide

Standard Rail Profile Comparison

Profile
Duty
Typical Application
Notes
41kg
Medium
Industrial floor track, workshops, fabrication facilities
Most widely used standard rail profile in Australian industry
View
47kg
Medium
Industrial track and mainline applications
Common profile across mining and bulk handling operations
View
50kg
Medium–Heavy
Industrial and infrastructure track, heavy transfer systems
Step up from 47kg for higher load requirements
View
53kg
Heavy
Mining, bulk handling, heavy industrial and mainline track
Widely specified across Australian heavy industry and mining
View
60kg
Heavy
High-load mining, stacker reclaimers, heavy haul applications
Head hardened available for high-cycle and abrasive conditions
View
68kg
Very Heavy
Heaviest mining and bulk handling applications
Heaviest AS standard profile in the range
View
136RE
Heavy
Some mining operations
AREMA specification, broadly equivalent to 68kg
View

Other profiles available on request. Contact us with your requirements.

Head Hardened Rail

Head Hardened Rail for High-Wear Applications

Head hardened rail is standard rail that has undergone a controlled heat treatment process to increase the surface hardness of the rail head. The harder surface resists wear and deformation under high-cycle or abrasive conditions, extending service life and reducing maintenance intervals in demanding environments.

Available across selected standard rail profiles. Inform Rail can source head hardened rail to suit your specification. Include the requirement in your enquiry and we'll advise on availability and lead times.

Enquire About Head Hardened Rail

When to Specify Head Hardened

MiningHigh-cycle haul road track and underground mining applications
Stacker reclaimersHeavy equipment running on tight radii or high-load track
Bulk handlingPort and terminal equipment subject to abrasive material contact
Heavy haulHigh axle load mainline applications where standard rail wears prematurely
CurvesAny application with significant curvature where head wear accelerates
FAQ

Standard Rail: Common Questions

What is Australian standard rail?
Australian standard (AS) rail refers to flat-bottom rail profiles specified to Australian Standard dimensions — 41kg, 47kg, 50kg, 53kg, 60kg and 68kg. The designation refers to the weight per metre of the rail section. AS standard rail is widely used in Australian mainline, mining, port and industrial track applications.
What standard rail profile is most commonly used in Australian industry?
41kg is the most widely used standard rail profile in Australian industrial applications, common in workshops, fabrication facilities and industrial floor track. For heavier mining and bulk handling applications, 47kg, 53kg and 60kg are frequently specified. Send us your application details and we'll advise on the right section.
What is the difference between standard rail and crane rail?
Standard rail has a narrower head suited to flanged wheels on conventional track systems including stacker reclaimers, transfer cars, locomotives and industrial floor track. Crane rail (DIN 536) has a unique wide head geometry engineered specifically for crane wheel contact in overhead crane runway applications. The two rail types are not interchangeable.
What is head hardened rail and when should I use it?
Head hardened rail is standard rail that has been heat treated to increase the hardness of the rail head surface. This extends wear life in high-cycle, high-load or abrasive applications, common in mining, stacker reclaimer runways, heavy haul track and applications with significant curvature. It is available across selected standard rail profiles on request.
What is 136RE rail?
136RE is an AREMA (American Railway Engineering and Maintenance-of-Way Association) specification rail weighing approximately 67.5kg per metre, broadly equivalent to the Australian 68kg profile. It is found in older Australian installations and some mining operations that were originally built to imperial specification.
Can you supply standard rail cut to length?
Yes. Standard rail can be cut to your specified lengths prior to dispatch. Include your required lengths in your enquiry and we'll advise on what's possible for your profile. No minimum order applies.

Need Standard Rail for Your Project?

Send us your profile, application details or drawings and we'll come back with a practical supply option.
