A65 Crane Rail — DIN 536

Medium duty crane rail for overhead crane runways and industrial applications. Suited to single and double girder systems with moderate to heavier wheel loads. Supplied with matched clips and fastening systems.

Get a Fast Quote View All Crane Rail

Crane Rail — DIN 536

A65 Crane Rail — Supplied Across Australia

Inform Rail supplies DIN 536 A65 crane rail for medium duty overhead crane runways and industrial applications across Australia. The A65 sits between the A55 and A75 in the DIN 536 range and is one of the more commonly specified profiles for single and double girder overhead crane systems in Australian workshops, manufacturing facilities and warehouses.

The A65 features a 65mm head width with the wider foot geometry of the A-series range, providing stable wheel guidance and good load distribution under moderate to heavier wheel loads. Matched fastening systems including clips, pads, fishplates and sole plates can be supplied to suit the profile.

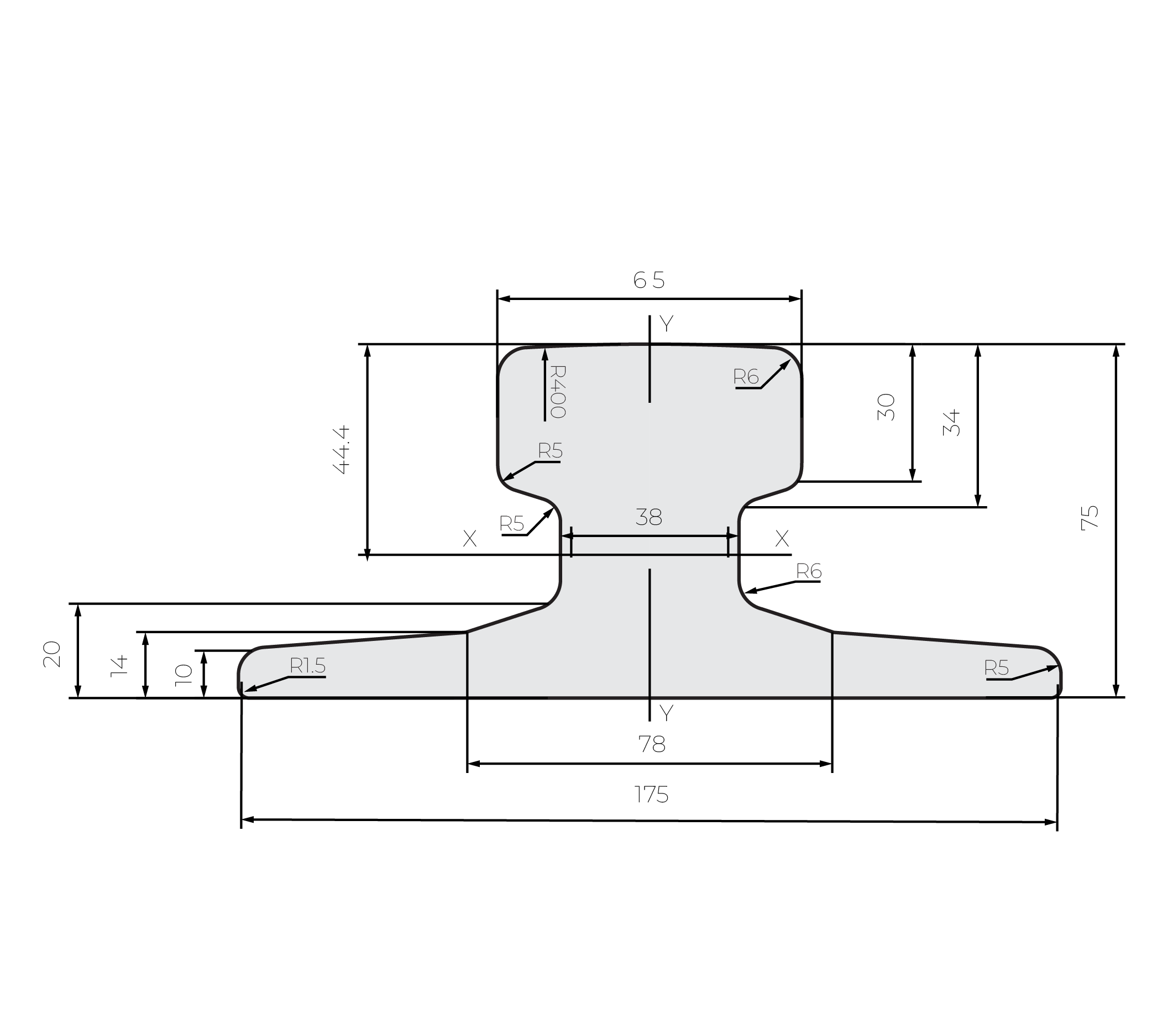

A65 DIN 536 crane rail supplied by Inform Rail Australia

65mm

Head Width

75mm

Height

175mm

Foot Width

38mm

Web

43.1

kg / metre

DIN 536

Standard

Applications

Where A65 Crane Rail is Used

The A65 is a medium duty crane rail suited to overhead crane systems with moderate to heavier wheel loads. It is widely used in manufacturing, warehousing and fabrication environments across Australia. If you are unsure whether A65 is the right profile for your application, send us your crane details and we'll advise.

Primary Use

Medium duty overhead crane runways in manufacturing facilities, warehouses and fabrication shops

Crane Type

Single and double girder overhead crane systems with moderate to heavier wheel loads

Environments

Warehouses, manufacturing plants, steel fabrication facilities and general industrial operations

Ports and Terminals

Light gantry crane and transfer systems in port and logistics environments

Replacement

Direct replacement for worn or damaged A65 runway sections

Not sure?

Send us your wheel load, span and duty class and we'll confirm the right profile. Get in touch

Fastening Systems

Compatible Rail Clips for A65

The A65 profile is compatible with welded and bolted crane rail clips for medium duty applications. Clip selection depends on your installation method, substructure and load requirements.

Welded

M71

Two-part welded clip for lighter A65 installations. Friction connection torqued to specification.

Welded

M120

Two-part welded clip for medium to heavy duty A65 installations with higher lateral loads.

Bolted

CL4-20

M20 through-bolt bearing connection for A65 installations where adjustability is required.

Bolted

CLX-20

M20 through-bolt with extended lateral adjustment for A65 installations requiring wider alignment tolerance.

Fastening System

Full System

Matched fishplates, sole plates, rail pads and hook bolts as a complete fastening system for A65 installations.

Not sure which clip suits your A65 installation? Send us your drawings or application details and we'll advise on the correct clip type, size and spacing.

FAQ

A65 Crane Rail: Common Questions

What is A65 crane rail used for?

A65 crane rail is used for medium duty overhead crane runways in manufacturing, warehousing and fabrication environments. It is one of the more commonly specified A-series profiles in Australia, suited to single and double girder crane systems with moderate to heavier wheel loads where the A55 is too light but the A75 is not required.

What are the dimensions of A65 crane rail?

DIN 536 A65 crane rail has a head width of 65mm, a height of 75mm, a foot width of 175mm and a web thickness of 38mm. The mass is approximately 43.1 kg per metre. These dimensions are defined by the DIN 536 standard and are consistent across compliant manufacturers.

What clips are compatible with A65 crane rail?

Compatible welded clips for A65 include the M71 for lighter applications and the M120 for higher lateral loads. Compatible bolted clips include the CL4-20 and CLX-20. Clip selection depends on the installation method, substructure type and load requirements. Send us your drawings or crane details and we'll advise on the correct clip.

Is A65 the right profile for my overhead crane?

A65 suits medium duty overhead crane systems with moderate to heavier wheel loads. If your loads are lighter, the A55 or A45 may be sufficient. If loads are higher or the crane is heavy duty, the A75 or A100 may be more appropriate. The correct profile depends on wheel load, crane duty class, runway span and support spacing. Send us your crane specification and we'll advise.

Can A65 crane rail be supplied cut to length?

Yes. A65 crane rail can be cut to your specified lengths prior to dispatch. Standard lengths are 12m. Drilling to your bolt pattern is also available. Include your cutting and drilling requirements in your enquiry.

Can Inform Rail supply a complete A65 fastening system?

Yes. We can supply matched A65 crane rail clips, fishplates, sole plates, rail pads and hook bolts as a complete package. Send us your rail profile, substructure details and any drawings and we'll quote a complete fastening system. No minimum order applies.
