A75 Crane Rail — DIN 536

Medium to heavy duty crane rail for overhead crane runways in ports, mining, manufacturing and heavy industrial environments. Supplied with matched clips and fastening systems.

Crane Rail — DIN 536

A75 Crane Rail — Supplied Across Australia

Inform Rail supplies DIN 536 A75 crane rail for medium to heavy duty overhead crane runways and industrial applications across Australia. The A75 is one of the most widely used profiles in the A-series range, sitting between the A65 and A100 and covering a broad range of industrial crane applications from heavy manufacturing through to port and mining environments.

The A75 features a 75mm head width and 200mm foot, providing the wider base geometry that distributes load effectively under heavier wheel loads. Matched fastening systems including clips, pads, fishplates and sole plates can be supplied to suit the profile.

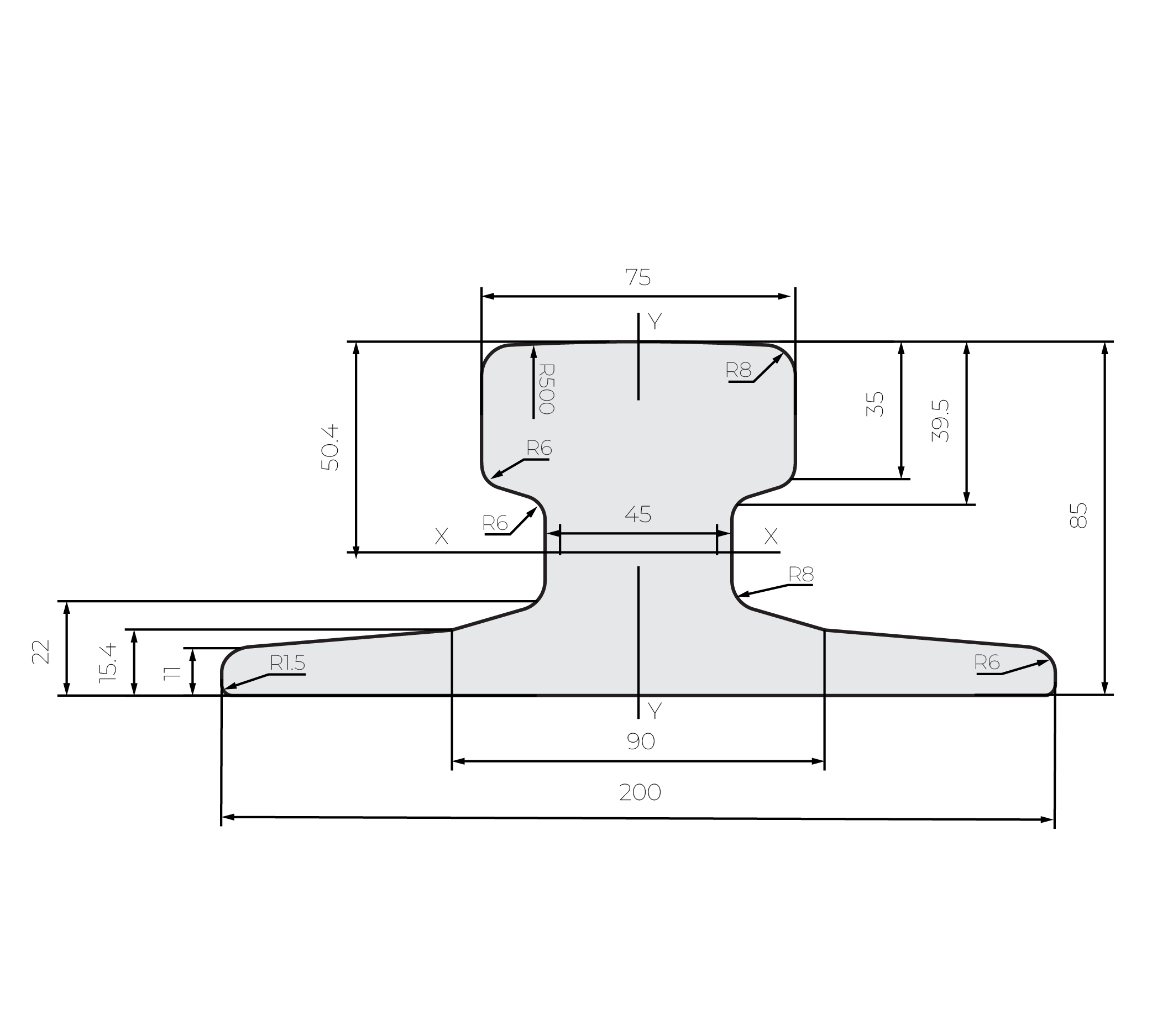

A75 DIN 536 crane rail supplied by Inform Rail Australia
75mm
Head Width
85mm
Height
200mm
Foot Width
45mm
Web
56.2
kg / metre
DIN 536
Standard
Applications

Where A75 Crane Rail is Used

The A75 is a medium to heavy duty crane rail profile suited to overhead crane systems with heavier wheel loads. It is widely used across ports, mining operations, heavy manufacturing and steel processing environments in Australia. If you are unsure whether A75 is the right profile for your application, send us your crane details and we'll advise.

Primary Use
Medium to heavy duty overhead crane runways in ports, mining and heavy industrial facilities
Crane Type
Double girder and heavy single girder overhead crane systems with heavier wheel loads
Industries
Ports, steel processing, mining operations, shipyards and large manufacturing facilities
Bulk Handling
Reclaimer and stacker runways, ship loader systems and bulk terminal crane infrastructure
Replacement
Direct replacement for worn or damaged A75 runway sections
Not sure?
Send us your wheel load, span and duty class and we'll confirm the right profile. Get in touch
Fastening Systems

Compatible Rail Clips for A75

The A75 profile is compatible with welded and bolted crane rail clips for medium to heavy duty applications. Clip selection depends on your installation method, substructure and load requirements.

Welded
M120
Two-part welded clip for medium to heavy duty A75 installations. Friction connection torqued to specification.
Welded
M165
Two-part welded clip for the heaviest A75 applications with high lateral load requirements.
Bolted
CL4-20
M20 through-bolt bearing connection for A75 installations where adjustability is required.
Bolted
CLX-20
M20 through-bolt with extended lateral adjustment for A75 installations requiring wider alignment tolerance.
Bolted
CLX-24
M24 heavy duty bolted clip for A75 installations with the highest lateral load requirements.
Fastening System
Full System
Matched fishplates, sole plates, rail pads and hook bolts as a complete fastening system for A75 installations.

Not sure which clip suits your A75 installation? Send us your drawings or application details and we'll advise on the correct clip type, size and spacing.

Crane Rail Range

Other Crane Rail Profiles

A45
Light duty
A55
Light–medium
A65
Medium duty
A100
Heavy duty
A120
Very heavy duty
FAQ

A75 Crane Rail: Common Questions

What is A75 crane rail used for?
A75 crane rail is used for medium to heavy duty overhead crane runways in ports, mining operations, steel processing, shipyards and large industrial facilities. It is one of the most widely used profiles in the A-series range and suits double girder and heavy single girder overhead crane systems with heavier wheel loads.
What are the dimensions of A75 crane rail?
DIN 536 A75 crane rail has a head width of 75mm, a height of 85mm, a foot width of 200mm and a web thickness of 45mm. The mass is approximately 56.2 kg per metre. These dimensions are defined by the DIN 536 standard and are consistent across compliant manufacturers.
What clips are compatible with A75 crane rail?
Compatible welded clips for A75 include the M120 and M165. Compatible bolted clips include the CL4-20, CLX-20 and CLX-24. Clip selection depends on the installation method, substructure type and load requirements. Send us your drawings or crane details and we'll advise on the correct clip.
Is A75 the right profile for my overhead crane?
A75 suits medium to heavy duty overhead crane systems with heavier wheel loads. If your loads are lower, the A65 or A55 may suffice. If your application involves very high loads such as large port cranes or heavy industrial equipment, the A100 or A120 may be more appropriate. The correct profile depends on wheel load, crane duty class, runway span and support spacing. Send us your crane specification and we'll advise.
Can A75 crane rail be supplied cut to length?
Yes. A75 crane rail can be cut to your specified lengths prior to dispatch. Standard lengths are 12m. Drilling to your bolt pattern is also available. Include your cutting and drilling requirements in your enquiry.
Can Inform Rail supply a complete A75 fastening system?
Yes. We can supply matched A75 crane rail clips, fishplates, sole plates, rail pads and hook bolts as a complete package. Send us your rail profile, substructure details and any drawings and we'll quote a complete fastening system. No minimum order applies.

Need A75 Crane Rail?

Send us your requirements, drawings or project details and we'll come back with a practical supply option.
