86kg Rail - Heavy Duty Crane Rail

86kg rail is a heavy duty crane rail suited to stacker reclaimers, ship loaders, steelworks cranes, port and wharf cranes and heavy mining applications. Supplied with matched clips and fastening systems.

Get a Fast Quote View All Crane Rail Download Product Sheet
Crane Rail

86kg Crane Rail, Supplied Across Australia

Inform Rail supplies 86kg crane rail for heavy duty crane applications across Australia. The 86kg is a high-capacity crane rail profile designed for demanding applications including stacker reclaimers, ship loaders, steelworks cranes, port and wharf cranes and heavy mining infrastructure.

The rail is manufactured by ArcelorMittal with a 102mm head width, a 102mm height and a 165mm foot width, and has a calculated mass of 85.5 kg per metre. It is produced from a high-strength grade with a minimum tensile strength of 1080 N/mm², a minimum yield point of 640 N/mm² and a minimum hardness of 320 HB, giving strong wear performance under high wheel loads. Standard supply length is 12 metres, with cut-to-length available prior to dispatch. Matched fastening systems can be supplied to suit the profile and substructure.

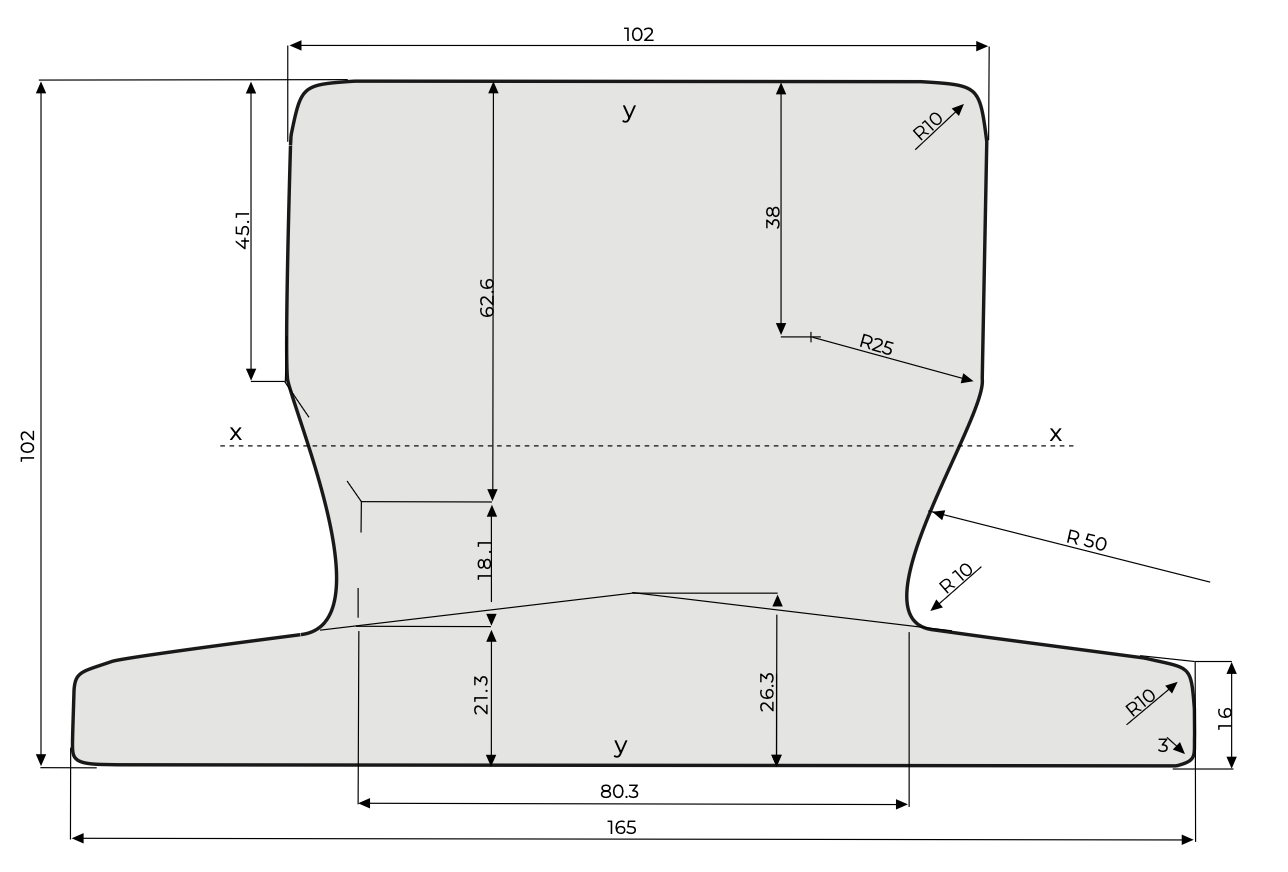

86kg crane rail supplied by Inform Rail Australia
102mm
Head Width
102mm
Height
165mm
Foot Width
85.5
kg / metre
320 HB
Min Hardness
12m
Standard Length
Applications

Where 86kg Rail is Used

86kg rail is a heavy duty crane rail suited to demanding applications where a heavier, higher-strength section is required. Its high hardness and tensile properties suit large crane wheels operating under high dynamic loads in port, steelworks and mining environments.

Primary Use
Stacker reclaimers and ship loader runways in port and bulk handling terminals
Steelworks
Steelworks crane runways and ladle crane systems operating under very high loads
Ports and Wharves
Port and wharf crane runways including ship-to-shore and container handling systems
Mining
Heavy mining crane infrastructure and ore handling systems requiring a high-capacity profile
Replacement
Direct replacement for worn or damaged 86kg rail in existing heavy industrial installations
Not sure?
Send us your crane details, drawings and application and we'll confirm the right profile and fastening system. Get in touch
Fastening Systems

Compatible Rail Clips for 86kg Rail

The 86kg profile requires heavy duty crane rail clips matched to its head geometry and high lateral load requirements. Clip selection depends on your substructure type and load requirements. Send us your drawings and we'll advise on the right system.

Welded
Heavy Duty Welded Clips
Two-part welded clip systems for high lateral load 86kg installations on steel substructures.
Bolted
Heavy Duty Bolted Clips
Heavy duty bolted clip systems with adjustment range for 86kg installations requiring lateral alignment flexibility.
Fastening System
Full System
Matched fishplates, sole plates and rail pads as a complete fastening system for 86kg installations.

Not sure which clip suits your 86kg rail installation? Send us your substructure details, drawings and application and we'll advise on the correct clip type and spacing.

Crane Rail Range

Other Crane Rail Profiles

CR73
Heavy duty
A120
Very heavy duty
A100
Heavy duty
A75
Medium–heavy
FAQ

86kg Rail: Common Questions

What is 86kg crane rail used for?
86kg crane rail is used for heavy duty crane applications including stacker reclaimers, ship loaders, steelworks cranes, port and wharf cranes and heavy mining infrastructure. It is a high-capacity crane rail profile suited to applications where a heavier section than the common industrial profiles is required.
What are the specifications of 86kg crane rail?
86kg crane rail has a head width of 102mm, a height of 102mm and a foot width of 165mm, with a calculated mass of 85.5 kg per metre, and is supplied in standard 12 metre lengths. The rail is manufactured by ArcelorMittal with a minimum tensile strength of 1080 N/mm², a minimum yield point of 640 N/mm², a minimum hardness of 320 HB and a minimum elongation of 7 percent. Full cross-sectional dimensions are shown on the product sheet, available for download at the top of this page.
How does 86kg crane rail compare to the A-series profiles?
By mass, 86kg crane rail (85.5 kg/m) sits between the A100 and A120 profiles in the DIN 536 A-series range. It is manufactured to its own crane rail standard rather than DIN 536 and offers a high-strength section for heavy duty port, steelworks and mining crane applications.
What clips are compatible with 86kg crane rail?
86kg crane rail requires heavy duty clips matched to its head geometry and lateral load requirements. Both welded and bolted heavy duty clip systems are available. Clip selection depends on the substructure type and load requirements. Send us your drawings and application and we'll advise on the correct clip and spacing.
What lengths is 86kg crane rail available in?
86kg crane rail is supplied in standard 12 metre lengths. Cut-to-length is available prior to dispatch. Include your cutting requirements in your enquiry.
Can Inform Rail supply a complete 86kg fastening system?
Yes. We can supply matched crane rail clips, fishplates, sole plates and rail pads as a complete fastening package for 86kg rail. Send us your rail profile, substructure details and any drawings and we'll quote a complete fastening system. No minimum order applies.

Need 86kg Rail?

Send us your requirements, drawings or project details and we'll come back with a practical supply option.

Get a Fast Quote Call (07) 3339 3085
