CR73 Rail - Special Crane Rail

CR73 rail is a heavy duty special crane rail suited to stacker reclaimers, steelworks cranes, port and wharf cranes and heavy mining applications. Supplied with matched clips and fastening systems.

Get a Fast Quote View All Crane Rail Download Product Sheet
Special Crane Rail

CR73 Crane Rail, Supplied Across Australia

Inform Rail supplies CR73 crane rail manufactured to special crane rail standard for heavy duty crane applications across Australia. The CR73 is a special crane rail profile outside the standard DIN 536 A-series range, designed for demanding applications including stacker reclaimers, steelworks cranes, port and wharf cranes and heavy mining infrastructure.

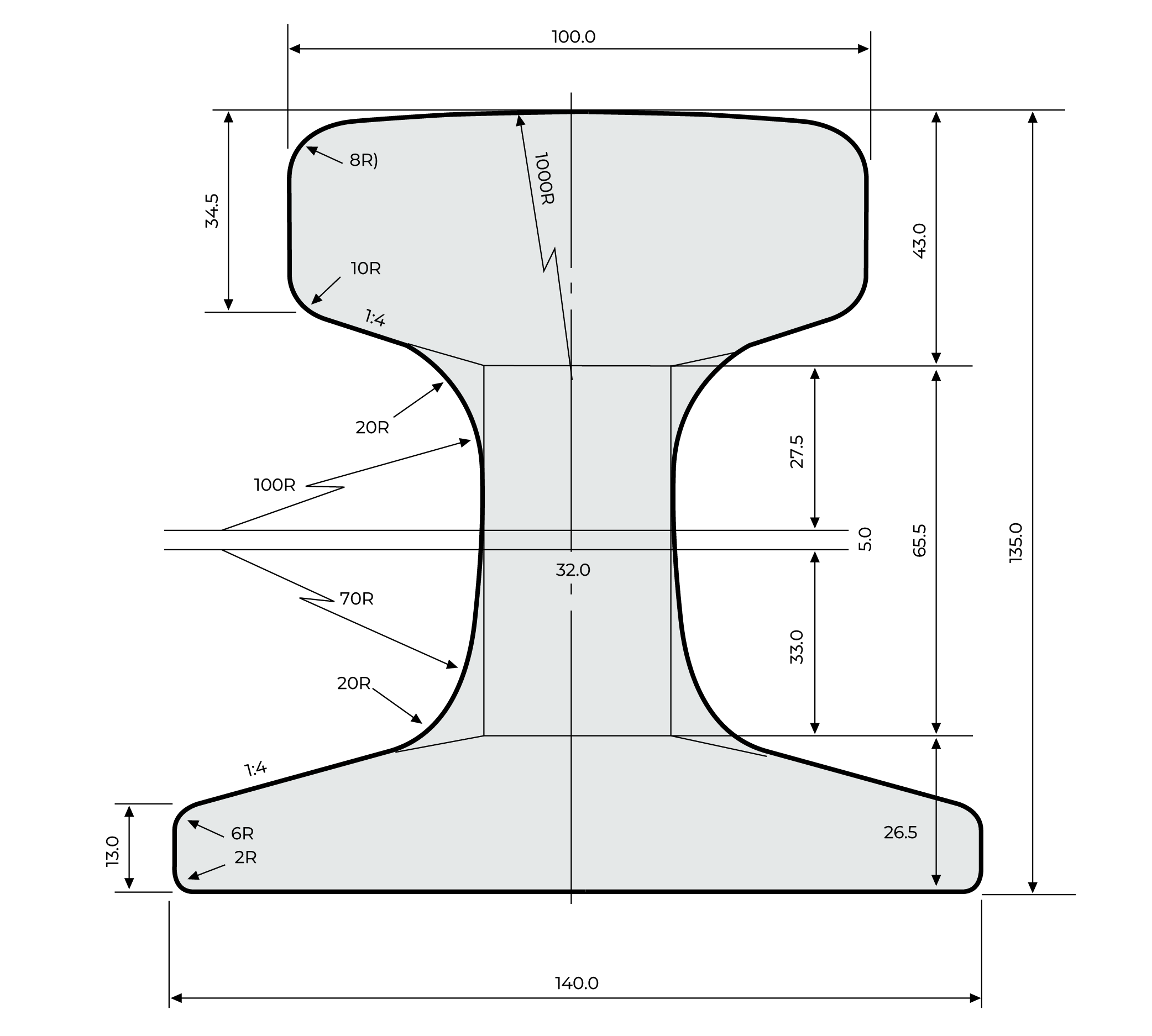

The CR73 has a 100mm head, a 140mm foot and a tall 135mm section with a 32mm web. At 73.30 kg/m it is close in mass to the A100 profile but substantially taller, giving greater bending stiffness for heavy crane wheel loads over wide support spacings. Matched fastening systems can be supplied to suit the profile and substructure.

CR73 special crane rail supplied by Inform Rail Australia
100mm
Head Width
135mm
Height
140mm
Foot Width
32mm
Web
73.30
kg / metre
Special
Standard
Applications

Where CR73 Rail is Used

CR73 rail is a heavy duty special crane rail suited to demanding applications where the standard A-series DIN 536 profiles are insufficient. Its heavy section and tall profile suit large crane wheels operating under high dynamic loads in port, steelworks and mining environments.

Primary Use
Stacker reclaimers and ship loader runways in port and bulk handling terminals
Steelworks
Steelworks crane runways and ladle crane systems operating under very high loads
Ports and Wharves
Port and wharf crane runways including ship-to-shore and container handling systems
Mining
Heavy mining crane infrastructure and ore handling systems requiring a special profile
Replacement
Direct replacement for worn or damaged CR73 rail in existing heavy industrial installations
Not sure?
Send us your crane details, drawings and application and we'll confirm the right profile and fastening system. Get in touch
Fastening Systems

Compatible Rail Clips for CR73 Rail

The CR73 profile requires heavy duty crane rail clips matched to its heavy section and high lateral load requirements. Clip selection depends on your substructure type and load requirements. Send us your drawings and we'll advise on the right system.

Welded
M165
The heaviest two-part welded clip in the range. Suited to high lateral load CR73 installations on steel substructures.
Bolted
CLX-24
M24 heavy duty bolted clip with extended adjustment range for CR73 installations requiring lateral alignment flexibility.
Fastening System
Full System
Matched fishplates, sole plates and rail pads as a complete fastening system for CR73 installations.

Not sure which clip suits your CR73 rail installation? Send us your substructure details, drawings and application and we'll advise on the correct clip type and spacing.

Crane Rail Range

Other Crane Rail Profiles

A100
Heavy duty
A120
Very heavy duty
86kg
Heavy duty
A75
Medium–heavy
FAQ

CR73 Rail: Common Questions

What is CR73 rail used for?
CR73 rail is used for heavy duty crane applications including stacker reclaimers, steelworks cranes, port and wharf cranes and heavy mining infrastructure. It is a special crane rail profile manufactured to special crane rail standard, suited to applications where the standard DIN 536 A-series profiles are insufficient.
What are the dimensions of CR73 rail?
CR73 rail has a head width of 100mm, a height of 135mm, a foot width of 140mm and a web thickness of 32mm. The mass is 73.30 kg per metre. The profile is manufactured to special crane rail standard. Its tall 135mm section gives high bending stiffness for heavy crane wheel loads over wide support spacings.
What clips are compatible with CR73 rail?
The CR73 profile requires heavy duty clips suited to its heavy section and high lateral load requirements. Compatible clips include the M165 welded clip and the CLX-24 heavy duty bolted clip. Clip selection depends on the substructure type and load requirements. Send us your drawings and application and we'll advise on the correct clip and spacing.
What lengths is CR73 rail available in?
CR73 rail is supplied in standard 12 metre lengths. Cut-to-length is available prior to dispatch. Include your cutting requirements in your enquiry.
Can Inform Rail supply a complete CR73 fastening system?
Yes. We can supply matched CR73 crane rail clips, fishplates, sole plates and rail pads as a complete fastening package. Send us your rail profile, substructure details and any drawings and we'll quote a complete fastening system. No minimum order applies.

Need CR73 Rail?

Send us your requirements, drawings or project details and we'll come back with a practical supply option.

Get a Fast Quote Call (07) 3339 3085
