136RE Rail — AREMA

Heavy haul rail for high-tonnage freight, mining haulage and heavy industrial applications. The 136RE is an AREMA-standard profile that is sometimes referenced alongside the Australian AS68 — however the two are distinct specifications and whether one is appropriate for your application needs careful consideration. Contact us to discuss.

Send an Enquiry View All Standard Rail Download Product Sheet
Standard Rail — AREMA

136RE Rail — Heavy Haul and Industrial Applications

The 136RE is a heavy haul rail profile under the AREMA standard, widely used across demanding rail environments including high-tonnage freight routes, mining and resource sector haulage systems, heavy industrial corridors, port terminals and high-impact loading zones. It is sometimes referenced alongside the Australian AS68 profile under AS1085.1, but the two are separate specifications under different standards and are not straightforward substitutes for one another.

The 136RE delivers exceptional stiffness, strong fatigue resistance and good wear performance under continuous high axle loads and severe dynamic forces. It is a preferred profile for bulk haul operations and environments where long service life under extreme operating conditions is the priority. If you are working with 136RE or comparing it to AS68, contact us with your project details and we will advise on what is available and appropriate for your specific application.

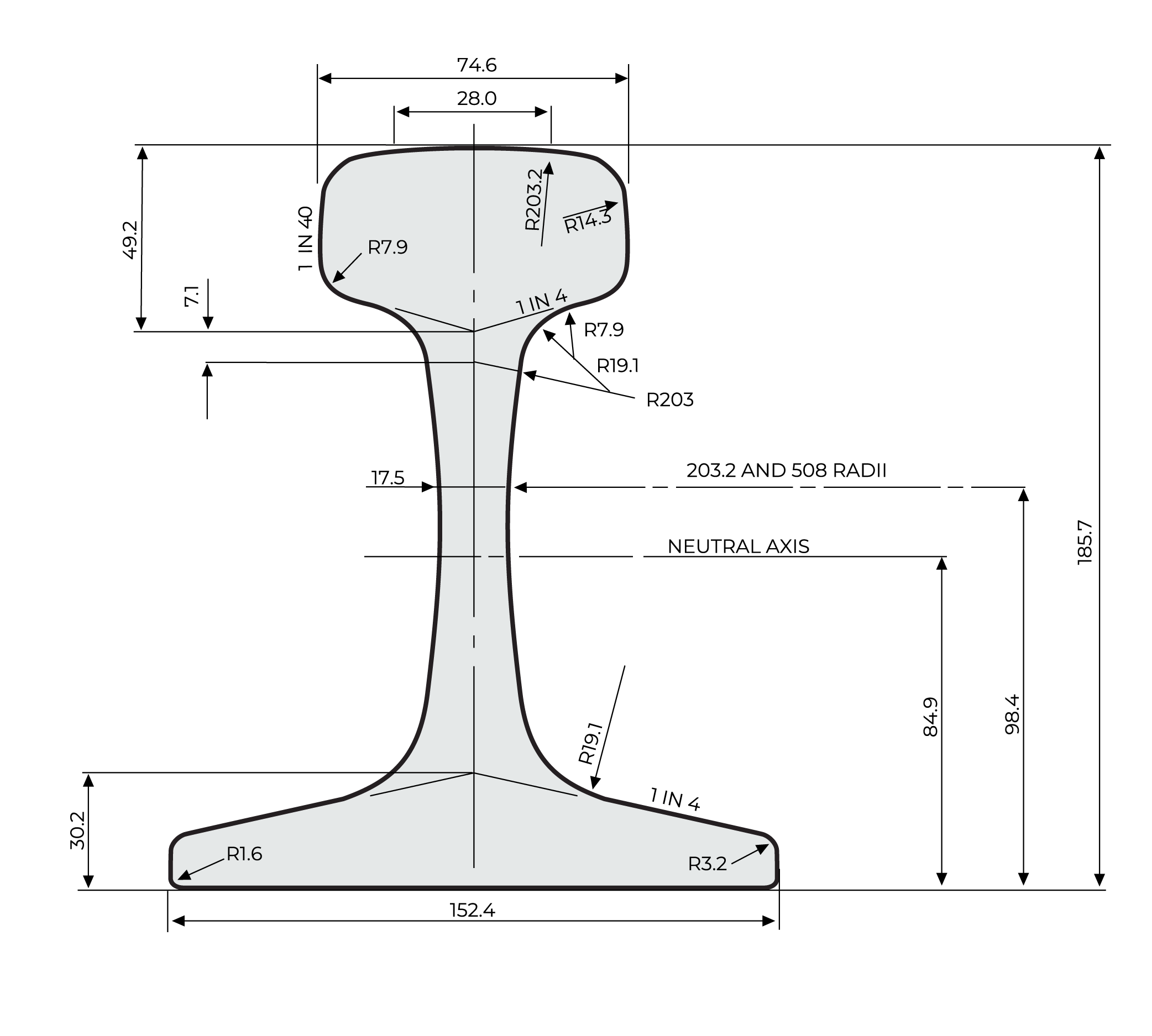

136RE heavy haul rail profile supplied by Inform Rail Australia
74.6mm
Head Width
185.7mm
Height
152.4mm
Foot Width
17.5mm
Web
67.6
kg / metre
AREMA
Standard
Applications

Where 136RE Rail is Used

The 136RE is specified for the heaviest duty mainline and industrial applications. It is found on high-tonnage freight networks, major mining haulage routes, port infrastructure and demanding industrial operations where maximum structural strength and wear resistance are required.

Heavy Haul
High-tonnage mainline freight corridors including iron ore, coal and grain haulage routes
Mining
Heavy mining haulage networks where maximum structural strength and wear resistance are required
Ports and Terminals
Major port crane runways, ship loader tracks and container terminal infrastructure
Industrial
Heavy industrial sidings, steel plant internal track and high-impact loading zones
Replacement
Like-for-like replacement on existing 136RE track where maintaining the rail section is required
Enquiries
Send us your project details, rail profile and application and we will advise on availability and supply options. Get in touch
Standard Rail Range

Other Standard Rail Profiles

41kg
Standard rail
50kg
Standard rail
53kg
Standard rail
60kg
Standard rail
68kg
Standard rail
FAQ

136RE Rail: Common Questions

What is 136RE rail used for?
136RE rail is used for heavy haul mainline freight, mining haulage, port crane runways and heavy industrial track where maximum structural strength and wear resistance are required. It is one of the most robust flat-bottom rail profiles in the AREMA range and is widely used across bulk haul operations and demanding industrial environments in Australia and internationally.
What are the dimensions of 136RE rail?
136RE rail has a head width of 74.6mm, a height of 185.7mm, a foot width of 152.4mm and a web thickness of 17.5mm. The mass is approximately 67.6 kg per metre. These dimensions are specified under the AREMA standard. While the 136RE is sometimes referenced alongside the Australian AS68 profile, the two are distinct specifications and should not be assumed to be interchangeable without confirming the requirements of your specific application.
What is the relationship between 136RE and AS68?
136RE and AS68 are separate profiles under different standards — 136RE under the American AREMA standard, and AS68 under the Australian AS1085.1 standard. They are sometimes referenced together and share some similarities, but they are not dimensionally equivalent and should not be treated as direct substitutes without engineering review. The correct profile for your application depends on your network requirements, fastening systems, load conditions and any relevant approvals. Contact us with your project details and we will advise on the right approach.
What is the difference between 136RE and 60kg rail?
The 136RE is taller (185.7mm vs 170mm), wider in the foot (152.4mm vs 146mm) and heavier (67.6 kg/m vs 60.6 kg/m) than the 60kg AS60 profile. This gives it significantly higher section modulus and load capacity. The 136RE is specified for the heaviest duty applications where the 60kg profile is insufficient.
What clips are compatible with 136RE rail?
Compatible welded clips for 136RE include the M120 and M165. Compatible bolted clips include the CLX-20 and CLX-24. Clip selection depends on the substructure type and load requirements. Send us your application details and we will advise on the correct clip.
What lengths is 136RE rail available in?
136RE rail is typically supplied in lengths of 12.19m and 13.72m, corresponding to the imperial 40ft and 45ft lengths. Other lengths may be available depending on the source. Send us your project requirements and we will advise on what is available.

Enquiries on 136RE Rail

Send us your project details, rail profile and application and we will come back with practical information on availability and supply options.
